Soldier Pile Walls with Cellular Concrete

Cellular concrete backfill behind soldier pile wall can result in cost savings


In many cases one might have to backfill over soft soil and carry a heavy load (such as a railway).

One approach to stabilizing such a retaining wall is to construct a soldier pile wall system and fill the space behind the soldier pile wall with structural backfill.

The density of the structural backfill would be in the order of 120 to 125 pcf (19 kN/m3), and will exert a considerable load on the soldier pile system especially if compaction is carried out.


One way to create significant savings is to replace the structural backfill with cellular concrete.

One such case was examined with DeepXcav, where the pile spacing could be increased from 6ft to 15 ft and savings in the order of 30% could be realized.

Switching to cellular concrete would be more beneficial when the length of retaining wall is greater and mobilization costs form a smaller part of the total project cost.

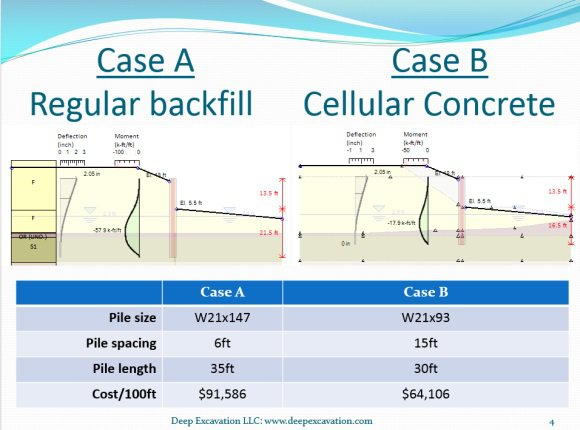

The following figure presents the basic results of our analyses: Case A) presents conditions without the cellular concrete, while Case B) presents conditions where cellular concrete is introduced.

The soldier pile wall alternatives were analyzed with the DeepEX - Review Software Capabilities

Design with structural backfill

Design with Cellular Concrete Backfill

Wall Length

​100

​100

Pier spacing

​6

​15

Number of piers

​16.67

6.67

Lagging Square feet

​1,500

​1,500

Lagging $/SF

​$ 10.00

​$ 10.00

Lagging Cost

​$ 15,000.00

​$ 15,000.00

Pier diameter

​3

​2

Pier depth

​35

​30

Steel

​W21X147

​W21X93

$/lb steel

​$ 1.00

​$ 1.00

Cost of steel

​$ 2,450.00

​$ 2,450.00

Concrete /pier

​9.16

​3.49

Concrete total

​152.64

​23.26

$ Concrete/CY inplace

​$ 250.00

​$ 250.00

total concrete cost

​$ 38,159.72

​$ 5,814.81

Drilling piers/day

​2

​2

drilling rate $/day

​3500

​3500

cost of drilling

​$ 29,166.67

​$ 11,666.67

CY/LF cellular

​0

​6.81

Cost of Cellular/CY

​0

​45

total cellular cost

​$ -

​$ 30,645.00

CY/LF soil Backfill

​6.81

​0

Cost of soil backfill/CY

​$ 10.00

​$ 10.00

total soil backfill cost

​$ 6,810.00

​$ -

Total Cost

​$ 91,586.39

​$ 64,106.48

Total Cost /LF

​$ 915.86

​$ 641.06

Cellular concrete with a relatively small density exerts a much smaller lateral pressure on the soldier pile wall. The cellular concrete behaves more like a solid mass that has the potential to slide on the existing slope and as a result the overall lateral load on the soldier piles is greatly reduced. Also, the point of application of the additional lateral load is much lower and closer to the initial ground surface which further reduces bending moments on the piles.

As a result, the number and size of piles can be reduced and savings are realized.
