As a quay wall designer you have to examine a range of issues from earth pressures, seismic conditions, ship loads, wave pressures, and on. Quay Walls is the only software that covers all these aspects in a single package. With easy to use wizards you can quickly generate from simple gravity walls to 3D caisson walls with infill zones. Quay Walls brings together coastal, structural, and geotechnical engineering principles in one package to make your design life easier. What does this mean? Wave pressures can now be automatically calculated with a number of established methods. Buildin recommendations allow you to easily estimate initial wave heights and wave lengths. You can even estimate overtopping flow rates!
We are 100% confident that QuayWalls is the ultimate tool for quay wall design. If you are a coastal, ports, or an engineer dealing with QuayWalls this is the tool to have.
The procedure to create and analyze any quay wall type within the program is summarized in the following steps:
1. Create the Quay Wall model with the use of the powerful Model Wizard in minutes with all construction stages.
2. Edit the Quay Wall structural section.
3. Edit the soil properties and stratigraphy.
4. Define the analysis assumptions, wave pressures and overtopping methods, and the seismic pressures method.
5. Review the results in graphs and tables on the model area for all construction stages and optimize the model.
1
About
QuayWalls: The Ultimate Software For Gravity Type Quay Walls

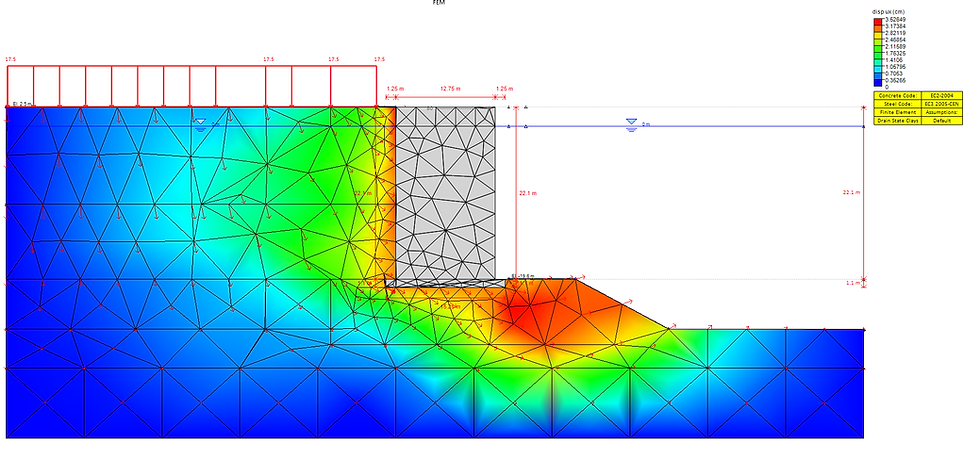

QuayWalls implements a powerful Model Wizard that can be used to generate any common quay wall type directly on the model area, so we can actually create any composite model in minutes.
Superior Interactive Interface
Graphical Editing Capabilities
Intuitive Dialogs for Editing Section Properties
Easy creation of composite models
Offers Comprehensive Analysis Tools
Convenient Results Review
2
Benefits
WHY CHOOSE QUAYWALLS?
3
Our Tutorials
HOW QUAYWALLS SOFTWARE WORKS
4
Features
MAIN QUAYWALLS FEATURES AND CAPABILITIES

SUPERIOR INTERACTIVE INTERFACESnailPlus is an extremely userfriendly software, which offers an interactive model interface. In the model area we can create all the stages stages and define all project parameters (external loads, soil nail sections, shotcrete section etc.) graphically. All items on the model area (boring, soil nails, facing) can be accessed and their properties can be defined through userfriendly dialogs.

EXPORT REPORTS IN PDF AND MS WORDSnailPlus reports can include tables and graphs with all examined model properties and calculated results. We can also choose to include to the report all structural design equations and calculation procedure. The SnaiPlus reports can be previewed, exported to PDF or exported to Word format, so they can be further edited by the user. Select Design Sections to Report Select Construction Stages to Report Customize Report Graphs Define Report Layout Define Report Sections Possibility to Report Equations and Stage Calculations Preview the Report Export Reports in PDF and Word Formats

SOIL PROPERTIES  SPT RECORDS  CPT LOGSThe soil types, soil properties and stratigraphies can be easily defined in SnailPlus through userfriendly dialogs. In SnailPlus we can create an unlimited list of soils and define all soil properties quickly. The software provides several estimation tools (SPT Estimator and partial estimation tools for each property using scientific methods and equations). In SnailPlus we can add directly SPT Records and CPT Logs, which can be used from the software to estimate various soil properties. Define list of soil types Define list of stratigraphies (borings) Soil properties estimation tools SPT Records CPT Logs

MODEL WIZARD  CREATE A MODEL IN SECONDSSnailPlus Model Wizard can be used to create any sloped surface with all construction stages, excavations and soil nail and facing installation in minutes. We can use the Wizard tabs to define all project parameters (sloped surface parameters, soil nail  head plates and shotcrete structural sections, stage options and design standards). The Wizard creates the model automatically, saving us a lot of time and effort for the initial creation.

STRUCTURAL AND GEOTECHNICAL DESIGN CODESHelixPile has implemented many international design codes and standards for the design and analysis (structural and geotechnical) of the helical piles. In HelixPile we can perform a service or factored design with the use of US and European standards. We can easily select and change between several US, European, Australian and Chinese structural codes. ACI 31811 (Reinforced Concrere Members) ASD 1989 (Allowable Stress Design  Steel Members) AASHTO LRFD 13th Edition (Steel Members) AISC 360 and 360Allowable (2010 and 2016) EUROCODE 2, 7 and 8 Specifications AASHTO LRFD Load Combinations European Codes (DIN, BS, XP94, DM, DA) Australian Standards (AS 3600, AS/NZS 4100) Chinese Standards (CN)

PILE GROUPS  PILE RAFTSHelixPile can design both Single Helical Piles, and Pile Groups with multiple piles (the additional optional module Pile Groups is required). The software can also design Pile Rafts, considering the combined effect of the soil below the raft (additional module to our Pile Group option). Single Helical Piles Rectangular Pile Caps Triangular Pile Caps Circular Pile Caps Hexagonal Pile Caps Octagonal Pile Caps UserDefined Perimeter Pile Caps Pile Rafts

PILE TYPES & HELIX CONFIGURATIONSHelixPile can do full vertical and lateral design of helical piles. The helical piles in HelixPile can be of any typical shape (pipes, square solid and square hollow sections). In each pile we can define and assign and unlimited number of helix configurations. The piles can be grouted. Finally, we can use external casing on the pile head, increasing the pile lateral capacity. Steel pipes Square sodid steel sections Square hollow steel sections Unlimited helix configurations per pile Grouted piles Use of external steel casing

AXIAL & LATERAL PILE ANALYSISHelixPile can perform both vertical and lateral pile analysis. HelixPile uses both the individual plate and the cylinder methods, reporting the most critical results. The general and the Helicap equations can be selected. For the vertical pile design, we can select to use either the Vesic, or the MeyerhoffHansen method. HelixPile calculates and checks the helical pile installation torque. For the lateral pile analysis, HelixPile can use either the defined load on the pile head and calculate the developed moment, shear and pile displacement diagrams, or it can perform a pushover analysis, calculating and presenting the required lateral load to achieve a specified pile head displacement. HelixPile can perform settlement analysis. In the software we can select one of the implemented pile acceptance criteria, or define our own.

SUPERIOR INTERACTIVE INTERFACEHelixPile is an extremely userfriendly software, which offers an interactive model interface. In the model area we can create different loading stages and define all project parameters (external loads on the pile head, pile section properties etc.) graphically. All items on the model area (boring, pile, external loads) can be accessed and their properties can be defined through userfriendly dialogs.

EXPORTED REPORTS IN PDF & WORDHelixPile can generate extensive reports for all examined design sections (piles) and loading stages. The reports in HelixPile are totally customizable  the end user can always select all the report sections included in the final report. HelixPile reports can include tables and graphs with all examined model properties and calculated results. We can also choose to include to the report all structural design equations and calculation procedure. The HelixPile reports can be previewed, exported to PDF or exported to Word format, so they can be further edited by the user. Select Design Sections to Report Select Construction Stages to Report Customize Report Graphs Define Report Layout Define Report Sections Possibility to Report Equations and Stage Calculations Preview the Report Export Reports in PDF and Word Formats

AUTO MODEL GENERATION & OPTIMIZATIONHelixPile Model Wizard can be used to create any deep foundation model in minutes. We can use the Wizard tabs to define all project parameters (analysis settings, pile type and structural section, external loads and design standards). The Wizard creates the model automatically, saving us a lot of time and effort for the initial creation. HelixPile has an automatic length optimization tool. The software can use a defined step to increase the pile depth up to a defined depth limit, calculating the axial tension and compression capacity in each step.

SOIL PROPERTIES  SPT RECORDS  CPT LOGSThe soil types, soil properties and stratigraphies can be easily defined in HelixPile through userfriendly dialogs. In HelixPile we can create an unlimited list of soils and define all soil properties quickly. The software provides several estimation tools (SPT Estimator and partial estimation tools for each property using scientific methods and equations). In HelixPile we can add directly SPT Records and CPT Logs, which can be used from the software to estimate various soil properties. Define list of soil types Define list of stratigraphies (borings) Soil properties estimation tools SPT Records CPT Logs

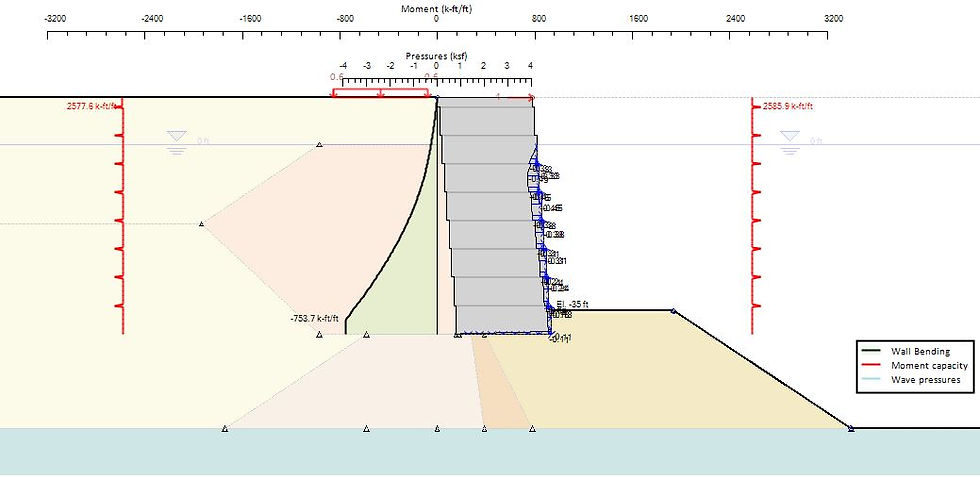

MULTIPLE WALL TYPESQuayWalls software can design any gravity type section quay wall, calculating soil, water, wave and seismic pressures on the wall system. QuayWalls can be used for the design and analysis of: Cantilever walls Segmental Walls Box Caisson Walls with soil infill zones T Shaped Walls User Defined Walls

WAVE PRESSURES & OVERTOPPINGQuayWalls can calculate wave pressures with a number of established methods. The initial wave heights and wave lengths can be estimated with implemented recommendations, or manualy defined by the user through a userfriendly dialog. Finally, QuayWalls can automatically estimate overtopping flow rates since it can perform average overtopping volume calculations using PROVERBS equations. Goda SainFlou Coastal Engineering Manual 2011 Allsop PROVERBS

SLOPE STABILITY ANALYSIS & SOIL NAIL DESIGNSnailPlus global stability of slope surfaces (simple or reinforced with soil nails). SnailPlus can calculate and report the most critical slope surface and the slope stability safety factor with the use of several scientific methods. Soil nails can be used in the slope surfaces. SnailPlus calculates the effects of the soil nails to the slope stability analysis. Bishop Method MorgensternPrice Method (General Limit Equilibrium) Spencer Method French Clouterre standards for the soil nail design

FULL DESIGN OF THE SHOTCRETE FACINGSnailPlus can design the shotcrete facing. Two stage facings (temporary and permanent) can be also defined and analyzed with the software. SnailPlus performs checks on the soil nail head plates. Design of the shocrete facing Two step facing available Head plate checks

DESIGN CODES AND SPECIFICATIONSSnailPlus has implemented various different standards and specifications for the soil nails and shotcrete facing design. In SnailPlus we can select ACI and FHWA specifications for the structural design. In the software we can either use Service Limit State or Ultimate Limit State methods. ACI Direct method FHWA and FHWA LRFD methods LRFD WSDOT 2019 (GDM) ASD Safety factors LRFD FHWA GEC7 EUROCODE 7  ULS Approach

MULTIPLE SLOPE SURFACE SEARCH OPTIONSSnailPlus can locate and report the most critical slope surface using various slope surface search methods: Circular Slope Surfaces Circular Surfaces with Active and/or Passive Wedges Automatic Surface Search Method Trilinear Surface Search Methods Surfaces with Blocktype failure UserDefined Slope Surfaces
