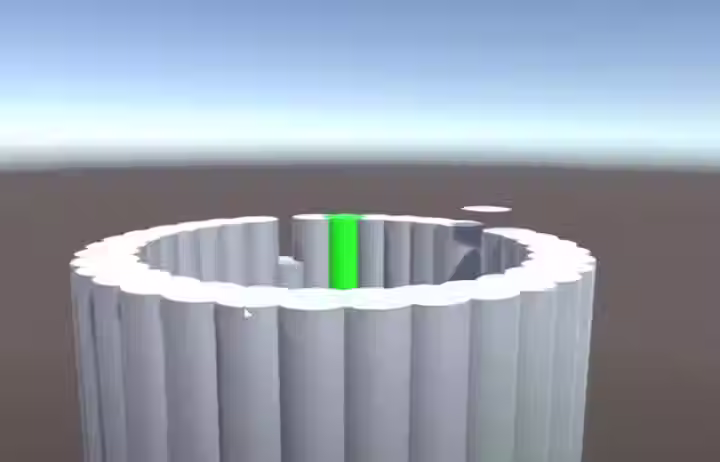

PileDVR-DeviateVR – Drilled Pile Verticality Inspection
3D and Virtual Reality
The Problem
When piles are drilled in, their installation usually deviates from what the design originally calls. For this reason engineers specify verticality and deviation tolerances that must be met during pile installation to ensure that the construction meets the design requirements.
For drilled piles, specialty monitoring equipment can be attached to the drilling head that records the vertical position of the drill head with depth. Up to now the only way to visualize pile deviations has been to use two dimensional cross sections with depth, we were unable as engineers to see and inspect the pile records as if we were really underground, but that is not any more the case!
The solution
With DeviateVR we are launching a new era in geotechnical inspection. We can now inspect pile installation records in three dimensions or using virtual reality. We can now achieve what is physically impossible, we can now visualize underground installation as if we are standing in real scale within the ground.
See the installation in actual dimensions
Ensure construction quality
Prepare an action plan in advance
Comprehensive Settlement Calculation
Improved Accuracy in Monitoring
Safety Enhancements
