Lösen und optimieren Sie sichere tiefe Ausgrabungen - Strukturelle, geotechnische, Grenzgleichgewichts- und Finite-Elemente+ Ein Monat Handberechnungen oder 30 Minuten mit DeepEX?

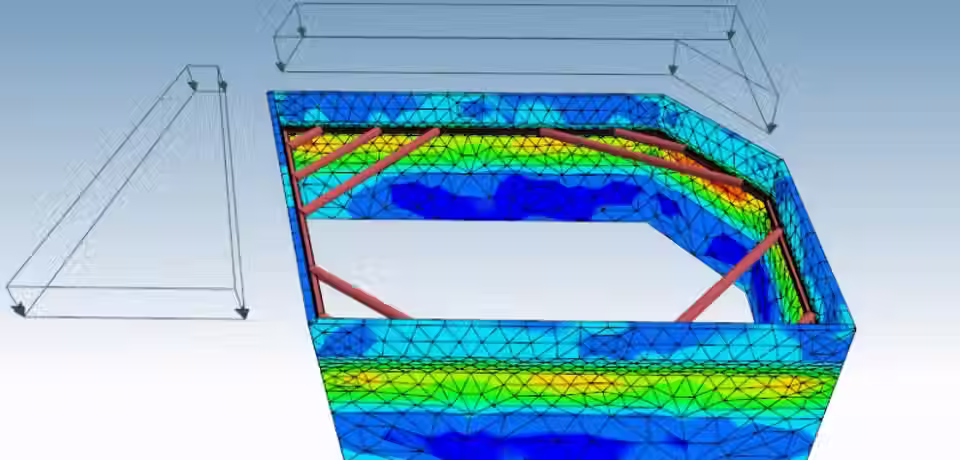

3D finite element analysis model of a braced deep excavation with DeepEX

Wenn Sie in der Branche für Tiefbau tätig sind, kennen Sie alle Herausforderungen, die adressiert werden müssen. Das Design von Tiefbauwerken kann ein riskantes Geschäft sein, wenn man nicht auf die Details achtet. Von der Auswahl des Wandtyps und der Aussteifung, der Schätzung der Bodeneigenschaften und der Gebäudelasten bis hin zu Design- und Analysemethoden, die Anzahl der zu bewältigenden Designherausforderungen ist groß. Deshalb haben wir DeepEX entwickelt, eine Software, die all diese Herausforderungen im Tiefbau effizient und umfassend angeht.

Früher brauchte unser CEO eine Woche, um das Design eines Tiefbauabschnitts zu vervollständigen. Jetzt kann mit DeepEX dasselbe Design in 30 Minuten oder weniger abgeschlossen werden.

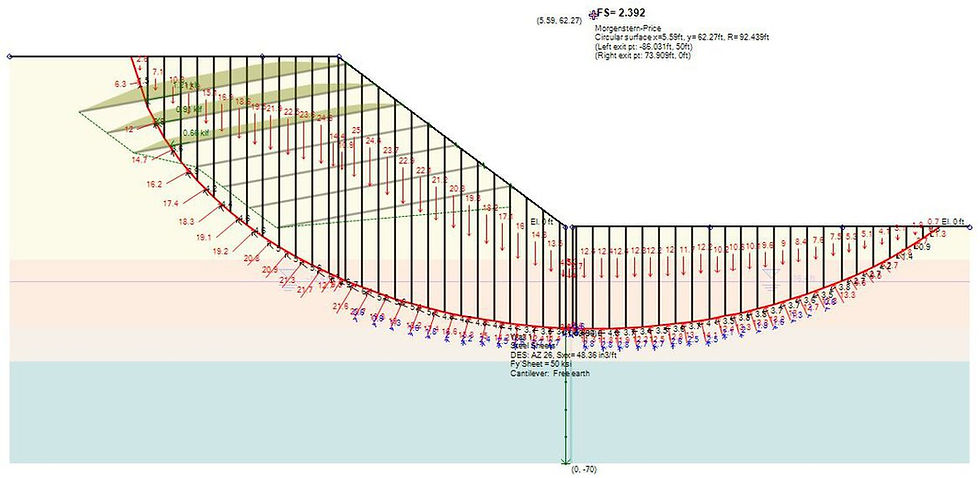

Soldier pile and tieback excavation with DeepEX software, including slope stability

Wir sind leidenschaftlich an Tiefbau interessiert und können Ihnen helfen, erfolgreich zu sein.

DeepEX ist ein innovatives, benutzerfreundliches Softwareprogramm für Tiefbau, entwickelt von Experten für Ingenieure wie Sie. Es löst sowohl geotechnische als auch strukturelle Entwürfe für viele Wandtypen, die Soldatenpfahlwände, Spundwände und Schlitzwände mit mehreren Verstärkungsabschnitten umfassen. DeepEX kann auch die Stabilitätsanalyse von Böschungen mit Bodennagelung durchführen. Es kommt mit allen strukturellen und geotechnischen Designcodes. DeepEX sammelt langjährige internationale Erfahrung in geotechnischer und struktureller Erfahrung in Tiefbauentwurf und Softwareentwicklung mit mehr als 3000 Nutzern weltweit. Ingenieure in den USA, Singapur, Australien, Indien, der Ukraine, der Türkei, Malaysia und anderen Ländern verwenden DeepEX als ihr bevorzugtes Werkzeug für den Tiefbauentwurf.

1

Über

DeepEX 2024 - Design von Tiefbauwerken und Tunneln:

Grenzgleichgewicht, Hangstabilität, nicht-lineare Analyse, 2D/3D Finite Elemente, 3D-Design, Visualisierung, Zeichnungserstellung, Tunnelplanung, stadtweite Schadensbewertung – alles in einer Lösung.

3

Unsere Tutorials

WIE DIE DEEPEX-SOFTWARE FUNKTIONIERT: ES DAUERT WENIGER ALS 2 MINUTEN, UM ZU VERSTEHEN, WIE LEISTUNGSSTARK DEEPEX IST!

Planen und optimieren Sie eine Tiefbauausschachtung in nur 5 Minuten!

Schätzen Sie die Kosten, führen Sie eine globale Stabilitätsanalyse durch, bereiten Sie Ihre Schnittzeichnungen (DXF) vor!

Beeindrucken Sie Ihre Kunden mit der Ausschachtung in 3D oder Virtual Reality, bevor etwas gebaut wird!

Sparen Sie Zeit und

Mühe bei der Planung

jedes Tiefbauausschacht

ungsmodells!

Bewerten Sie verschiedene Alternativen und Methoden in Sekunden!

Interaktive, spielähnliche Umgebung!

2

Vorteile

Warum DeepEX wählen?

4

Merkmale

HAUPTEIGENSCHAFTEN UND FÄHIGKEITEN VON DEEPEX

  • SUPERIOR INTERACTIVE INTERFACE
    SnailPlus is an extremely user-friendly software, which offers an interactive model interface. In the model area we can create all the stages stages and define all project parameters (external loads, soil nail sections, shotcrete section etc.) graphically. All items on the model area (boring, soil nails, facing) can be accessed and their properties can be defined through user-friendly dialogs.
  • EXPORT REPORTS IN PDF AND MS WORD
    SnailPlus reports can include tables and graphs with all examined model properties and calculated results. We can also choose to include to the report all structural design equations and calculation procedure. The SnaiPlus reports can be previewed, exported to PDF or exported to Word format, so they can be further edited by the user. Select Design Sections to Report Select Construction Stages to Report Customize Report Graphs Define Report Layout Define Report Sections Possibility to Report Equations and Stage Calculations Preview the Report Export Reports in PDF and Word Formats
  • SOIL PROPERTIES - SPT RECORDS - CPT LOGS
    The soil types, soil properties and stratigraphies can be easily defined in SnailPlus through user-friendly dialogs. In SnailPlus we can create an unlimited list of soils and define all soil properties quickly. The software provides several estimation tools (SPT Estimator and partial estimation tools for each property using scientific methods and equations). In SnailPlus we can add directly SPT Records and CPT Logs, which can be used from the software to estimate various soil properties. Define list of soil types Define list of stratigraphies (borings) Soil properties estimation tools SPT Records CPT Logs
  • MODEL WIZARD - CREATE A MODEL IN SECONDS
    SnailPlus Model Wizard can be used to create any sloped surface with all construction stages, excavations and soil nail and facing installation in minutes. We can use the Wizard tabs to define all project parameters (sloped surface parameters, soil nail - head plates and shotcrete structural sections, stage options and design standards). The Wizard creates the model automatically, saving us a lot of time and effort for the initial creation.
  • STRUCTURAL AND GEOTECHNICAL DESIGN CODES
    HelixPile has implemented many international design codes and standards for the design and analysis (structural and geotechnical) of the helical piles. In HelixPile we can perform a service or factored design with the use of US and European standards. We can easily select and change between several US, European, Australian and Chinese structural codes. ACI 318-11 (Reinforced Concrere Members) ASD 1989 (Allowable Stress Design - Steel Members) AASHTO LRFD 13th Edition (Steel Members) AISC 360 and 360-Allowable (2010 and 2016) EUROCODE 2, 7 and 8 Specifications AASHTO LRFD Load Combinations European Codes (DIN, BS, XP94, DM, DA) Australian Standards (AS 3600, AS/NZS 4100) Chinese Standards (CN)
  • PILE GROUPS - PILE RAFTS
    HelixPile can design both Single Helical Piles, and Pile Groups with multiple piles (the additional optional module Pile Groups is required). The software can also design Pile Rafts, considering the combined effect of the soil below the raft (additional module to our Pile Group option). Single Helical Piles Rectangular Pile Caps Triangular Pile Caps Circular Pile Caps Hexagonal Pile Caps Octagonal Pile Caps User-Defined Perimeter Pile Caps Pile Rafts
  • PILE TYPES & HELIX CONFIGURATIONS
    HelixPile can do full vertical and lateral design of helical piles. The helical piles in HelixPile can be of any typical shape (pipes, square solid and square hollow sections). In each pile we can define and assign and unlimited number of helix configurations. The piles can be grouted. Finally, we can use external casing on the pile head, increasing the pile lateral capacity. Steel pipes Square sodid steel sections Square hollow steel sections Unlimited helix configurations per pile Grouted piles Use of external steel casing
  • AXIAL & LATERAL PILE ANALYSIS
    HelixPile can perform both vertical and lateral pile analysis. HelixPile uses both the individual plate and the cylinder methods, reporting the most critical results. The general and the Helicap equations can be selected. For the vertical pile design, we can select to use either the Vesic, or the Meyerhoff-Hansen method. HelixPile calculates and checks the helical pile installation torque. For the lateral pile analysis, HelixPile can use either the defined load on the pile head and calculate the developed moment, shear and pile displacement diagrams, or it can perform a pushover analysis, calculating and presenting the required lateral load to achieve a specified pile head displacement. HelixPile can perform settlement analysis. In the software we can select one of the implemented pile acceptance criteria, or define our own.
  • SUPERIOR INTERACTIVE INTERFACE
    HelixPile is an extremely user-friendly software, which offers an interactive model interface. In the model area we can create different loading stages and define all project parameters (external loads on the pile head, pile section properties etc.) graphically. All items on the model area (boring, pile, external loads) can be accessed and their properties can be defined through user-friendly dialogs.
  • EXPORTED REPORTS IN PDF & WORD
    HelixPile can generate extensive reports for all examined design sections (piles) and loading stages. The reports in HelixPile are totally customizable - the end user can always select all the report sections included in the final report. HelixPile reports can include tables and graphs with all examined model properties and calculated results. We can also choose to include to the report all structural design equations and calculation procedure. The HelixPile reports can be previewed, exported to PDF or exported to Word format, so they can be further edited by the user. Select Design Sections to Report Select Construction Stages to Report Customize Report Graphs Define Report Layout Define Report Sections Possibility to Report Equations and Stage Calculations Preview the Report Export Reports in PDF and Word Formats
  • AUTO MODEL GENERATION & OPTIMIZATION
    HelixPile Model Wizard can be used to create any deep foundation model in minutes. We can use the Wizard tabs to define all project parameters (analysis settings, pile type and structural section, external loads and design standards). The Wizard creates the model automatically, saving us a lot of time and effort for the initial creation. HelixPile has an automatic length optimization tool. The software can use a defined step to increase the pile depth up to a defined depth limit, calculating the axial tension and compression capacity in each step.
  • SOIL PROPERTIES - SPT RECORDS - CPT LOGS
    The soil types, soil properties and stratigraphies can be easily defined in HelixPile through user-friendly dialogs. In HelixPile we can create an unlimited list of soils and define all soil properties quickly. The software provides several estimation tools (SPT Estimator and partial estimation tools for each property using scientific methods and equations). In HelixPile we can add directly SPT Records and CPT Logs, which can be used from the software to estimate various soil properties. Define list of soil types Define list of stratigraphies (borings) Soil properties estimation tools SPT Records CPT Logs
  • MULTIPLE WALL TYPES
    QuayWalls software can design any gravity type section quay wall, calculating soil, water, wave and seismic pressures on the wall system. QuayWalls can be used for the design and analysis of: Cantilever walls Segmental Walls Box Caisson Walls with soil infill zones T Shaped Walls User Defined Walls
  • WAVE PRESSURES & OVERTOPPING
    QuayWalls can calculate wave pressures with a number of established methods. The initial wave heights and wave lengths can be estimated with implemented recommendations, or manualy defined by the user through a user-friendly dialog. Finally, QuayWalls can automatically estimate overtopping flow rates since it can perform average overtopping volume calculations using PROVERBS equations. Goda SainFlou Coastal Engineering Manual 2011 Allsop PROVERBS
  • SLOPE STABILITY ANALYSIS & SOIL NAIL DESIGN
    SnailPlus global stability of slope surfaces (simple or reinforced with soil nails). SnailPlus can calculate and report the most critical slope surface and the slope stability safety factor with the use of several scientific methods. Soil nails can be used in the slope surfaces. SnailPlus calculates the effects of the soil nails to the slope stability analysis. Bishop Method Morgenstern-Price Method (General Limit Equilibrium) Spencer Method French Clouterre standards for the soil nail design
  • FULL DESIGN OF THE SHOTCRETE FACING
    SnailPlus can design the shotcrete facing. Two stage facings (temporary and permanent) can be also defined and analyzed with the software. SnailPlus performs checks on the soil nail head plates. Design of the shocrete facing Two step facing available Head plate checks
  • DESIGN CODES AND SPECIFICATIONS
    SnailPlus has implemented various different standards and specifications for the soil nails and shotcrete facing design. In SnailPlus we can select ACI and FHWA specifications for the structural design. In the software we can either use Service Limit State or Ultimate Limit State methods. ACI Direct method FHWA and FHWA LRFD methods LRFD WSDOT 2019 (GDM) ASD Safety factors LRFD FHWA GEC-7 EUROCODE 7 - ULS Approach
  • MULTIPLE SLOPE SURFACE SEARCH OPTIONS
    SnailPlus can locate and report the most critical slope surface using various slope surface search methods: Circular Slope Surfaces Circular Surfaces with Active and/or Passive Wedges Automatic Surface Search Method Trilinear Surface Search Methods Surfaces with Block-type failure User-Defined Slope Surfaces
  • What is the difference between DeepFND and HelixPile?
    DeepFND and HelixPile are two similar, powerful software programs for the design and evaluation pile foundations. The programs can perform structural and geotechnical, lateral, and axial analysis of any foundation pile (single piles, pile groups and pile rafts).The only difference between the two programs is the available pile types. DeepFND can design all pile sections and pile types (helical and non-helical – drilled, driven, caissons, micropiles, CFA piles and more), whereas HelixPile can design only helical piles.
  • Does your program check the structural capacities of the piles as well?
    DeepFND and HelixPile software have implemented several structural codes used worldwide. The software do all calculations according to the selected standard and calculate the pile moment and shear capacities. All structural design checks and equations can be included in the software reports. Figure: Pile Moment, Shear and Displacement Diagrams - DeepFND
  • Can your software design pile caps with a group of piles?
    Our foundation pile design software can design single foundation piles, pile groups and pile rafts. The following pile cap shapes are available: Rectangular Pile Caps Triangular Pile Caps Circular Pile Caps Hexagonal Pile Caps Octagonal Pile Caps User-Defined Perimeter Pile Caps Pile Rafts The user can create a concrete cap of any shape and define the pile configuration (pile locations and structural sections). The program can calculate the load that is transfered on each pile, considering the pile location and analyze all piles. Figure: A Rectangular Cap with Concrete Piles - DeepFND Figure: A Circular Cap with Helical Piles - DeepFND and HelixPile
  • What type of Pile Analysis can your software do?
    Our foundation piles design software DeepFND and HelixPile can perform axial and lateral analysis of any pile type. The programs can calculate the pile shaft resistance and the bearing capacity of the piles, taking into consideration the pile installation method. In addition, the software can do lateral pile analysis, calculating the pile displacements, moment and shear diagrams for any applied load combination on the pile head.
  • How is the pile cap modelled, rigid or finite stiffness?
    The pile cap is modelled with quadrilateral shell finite elements. The user can post process stress resultants and displacement of the cap.
  • What type of loads can i add on a single pile?
    In DeepFND and HelixPile software, we can add axial loads, lateral loads and external moments on both directions on each single pile head. In addition, we can add a distrubuted lateral load along the pile (user-defined elevations and magnitude). The following list summarizes the loads that can be applied on each axis. - Axial Loads (Z Axis) In DeepFND and HelixPile we can add axial loads on the pile head. A positive axial load magnitude is a compression load (downwards) and a negative magnitude is a tension load (uplift). - Lateral Loads (X Axis) The X-Axis is along the screen. A positive magnitude is a left-to-right load, and a negative magnitude is a right-to-left load. - Lateral Loads (Y Axis) The Y-Axis is on the perpendicular direction of the screen. A positive magnitude is an inwards load, and a negative magnitude is an outwards load (from the screen to the user). - External Moments (X and Y Axis) The external moments on each direction can be defined for each stage. A positive moment magnitude is a counter-clockwise moment, a negative value is a closkwize moment.
  • Which structural section types can i use in DeepFND?
    DeepEX software can design any common pile type in minutes. The user can select the preferred pile type and define fast the wall section properties (dimensions, reinforcement, materials). The following pile types are available: Typical piles (drilled, driven, CFA, Caisons etc) can be of any typical shape (circular, square, hollow) reinforced concrete, structural steel or timber (wood). The pile can be normal or belled type. We can define composite pile sections and we can change the pile section along the pile depth. Helical piles in DeepFND can be of any typical shape (pipes, square solid and square hollow sections). In each pile we can define and assign and unlimited number of helix configurations. The piles can be grouted. Finally, we can use external casing on the pile head, increasing the pile lateral capacity. Helical piles (pipes, square solid or square hollow sections) Reinforced concrete piles (circular or square section) Prestressed Concrete & Sections with GFRP and CFRP Steel beams (H piles, pipes, channel sections) Belled type piles Timber piles (wood) Steel core piles Composite piles
  • Can i check a certain pile under different load combinations?
    In DeepFND and HelixPile software, the user can add construction stages in any foundation pile section model. The stages in our foundation pile design programs work as loading stages, we can access and define tha axial tension and compression loads, as well as, the lateral loads and external moments for different stages and the software will calculate the pile capacities for all load combinations. Figure: Pile Loading in different stages
  • How can i add a CPT log in your software?
    The user can create the file in excel and then export it as tab delimited. The file can be of .txt or .cor format. The files should follow a specific format - 1st row should be parameter names, second row should be the units, and then row by row (without the first column numbering), we need to include four specific columns as presented in the image below: After the cpt log import, the user needs to press on the "Process Data" button, so the rest of the properties are estimated:
  • Is it possible to view the Moment and shear and interaction diagrams used to calculate reinforcement?
    In DeepFND we can view the interaction diagrams for each concrete section. We can also view Moment and shear along the pile, with the capacity indicated with the red lines left and right of the M and Q diagrams. All diagrams, including the interaction diagrams can be included in the exported reports.
  • For a piled raft, how is the influence of the raft on the soil taken into account?
    When the raft option is enabled the soil beneath the cap is considered through a non-linear Winkler base (either elastoplastic or exponential plastic formulation based on user selection). Influence of the raft on the soil is taken into account through the automatic configuration of the free length of the internal piles based on the intersection between the pile influence regions. The soil enclosed within the free length region is considered to be moving along with the cap and piles , thus shear resistance contribution along the perimeter of the piles within the free length region is considered to be zero.
  • Can i create and save my own piles with helix configurations in DeepFND & HelixPile?
    DeepFND and HelixPile software programs can design any common helical pile shape (pipes, square solid and square hollow sections). We can easily select the section shape and define the section parameters (dimensions, material properties etc). On each created pile section, we can fast generate several helix configurations, by defining the number of helixes, the helix plate diameter and thickness, and the plate spacing. All the generated helix configurations can be saved on a partial database, unique for each generated pile. Later, we can simply access and assign one of the generated helix configurations to the pile. We can select to use an external casing on any helical pile, in order to increase the lateral pile capacity. We simply need to define the casing section and the length from the pile top, where the casing is placed. The generated helical pile sections can be saved in a folder in any local device, and they can be loaded in any software file. Finally, any pile in DeepFND and HelixPile can be grouted. For grouted piles, we need to define the grout diameter, and the part of the pile which is grouted.
  • What type of loads can i add on a pile cap?
    In DeepFND and in HelixPile, we can define several loads on a pile cap, as follows: A. Single load at the pile cap centroid This is the default option in the software Wizard. The user can automatically define the maximum axial load on the cap, the maximum lateral loads and external moments on each direction (X and Y axis), as well as the torsional moment that can be applied on the cap. B. Point Loads on User-Defined Locations This option allows the user to create load groups of point loads and define the load coordinates, as well as the magnitude of the axial load, and the lateral load and moment at every axis (X and Y). C. Area Loads on the Pile Cap This option allows the user to assign an area pressure load on the whole cap surface, or at user-defined locations. D. Linear Loads on the Pile Cap This option allows the user to assign linear loads between 2 user-defined points on the pile cap.
  • What in the Max Stress Check result i get in the summary table after the analysis?
    The maximum stress check result is the most critical of all structural and geotechnical checks. DeepFND calculates all and reports there the most critical one (biggest). In general, all checks in the program are (applied force/Capacity). So, Max Stress Check is the most critical of: 1. (Maximum Compression Load) / (Compression Capacity) (Geotechnical check) 2. (Maximum Tension Load) / (Tension Capacity) (Geotechnical check) 3. (Maximum plate reaction) / (Plate Ultimate Capacity) (Structural Check) 4. (Maximum Pile Moment) / (Pile Moment Capacity) (Structural Check)
  • How is the structural resistance determined?
    The structural capacity is calculated in accordance to the standards selected by the user and the nature of the section (concrete, steel, timber, composite etc). The user can define the structural section (concrete piles with internal reinforcing cage, steel casing, drivel steel beams with or without concrete covers, timber piles and then the software uses the corresponding design codes.
  • What theory is used for the lateral pile load analysis?
    The software uses P-Y curves to simulate the soil, while an Euler-Bernoulli beam (elastic or inelastic pile behaviour with distributed plasticity along the pile) is used for the pile. A full FEM analysis engine is currently under development and will be implemented in the DeepFND/HelixPile 2021 versions.
  • How does DeepFND consider the pile cap side lateral response (if the cap is inside the soil)?
    For the lateral resistance contribution of the cap there are 2 mechanisms that need to be included, (a) the passive resistance and (b) the bottom/side friction resistance of the pilecap. We have incorporated an automatic calculation of all the lateral springs of a pile cap. The constitutive laws of the pilecap lateral springs used in the software are illustrated bellow:
  • Is pile to pile interaction taken into account and how?
    The user has a number of options available for the consideration of the group interaction factors. The automatic approach corresponds to the methodology proposed in [1], however an extension has been implemented where influence between piles with different dimensions is taken into account.
  • PILE GROUPS - PILE RAFTS
    DeepFND can design both SinglePiles, and Pile Groups with multiple piles (the additional optional module Pile Groups is required). The software can also design Pile Rafts, considering the combined effect of the soil below the raft (additional module to our Pile Group option). Single Piles Rectangular Pile Caps Triangular Pile Caps Circular Pile Caps Hexagonal Pile Caps Octagonal Pile Caps User-Defined Perimeter Pile Caps Pile Rafts
  • GEOTECHNICAL CAPACITY - PILE TYPES
    DeepFND implements all approved scientific methods for the design of deep foundation piles. With DeepFND we can design drilled piles, driven piles, CFA piles,caissons, drilled-in-displacement piles, micropiles and helical piles. Drilled Piles Driven Piles Drilled-In-Displacement Piles CFA Piles Micropiles Caissons Helical Piles Implemented Standards: FHWA GEC8 & GEC 10 AASHTO Norlund AASHTO LRFD O’Neil and Reese FHWA 1999
  • STRUCTURAL DESIGN
    DeepFND incorporates many international design codes and standards for the design and analysis (structural and geotechnical) of all wall pile types. In DeepFND we can perform a service or factored design with the use of US and European standards. We can easily select and change between several US, European, Australian and Chinese structural codes. ACI 318-11 and 318-19 (Reinforced Concrere Members) ASD 1989 (Allowable Stress Design - Steel Members) AASHTO LRFD 13th Edition (Steel Members) AISC 360 and 360-Allowable (2010 and 2016) EUROCODE 2, 7 and 8 Specifications AASHTO LRFD 6th, 8th and 9th PEN DOT AASHTO European Codes (DIN, BS, XP94, DM, DA) Australian Standards (AS 3600, AS/NZS 4100) Chinese Standards (CN) NYC Building Code IBC 2015 standards
  • AXIAL & LATERAL PILE ANALYSIS
    DeepFND performs both vertical and lateral pile analysis and includes several bearing capacity equations. Easy recommendations help you select the appropriate method depending on the pile type and installation method. For regular piles: DeepFND implements multiple pile installation standards (FHWA GEC-8 and 10, AASHTO Norlund, IBC, NYC Building Code, AASHTO LRFD and more). For helical piles the software uses both the individual plate and the cylinder methods, reporting the most critical. The general and the Helicap equations can be selected. For the vertical pile design, we can select to use either the Vesic, or the Meyerhoff-Hansen method. DeepFND calculates and checks the helical pile installation torque. For the lateral pile analysis, DeepFND can use either the defined load on the pile head and calculate the developed moment, shear and pile displacement diagrams, or it can perform a pushover analysis, calculating and presenting the required lateral load to achieve a specified pile head displacement. DeepFND can perform settlement analysis. In the software we can select one of the implemented pile acceptance criteria, or define our own.
  • SOIL PROPERTIES - SPT RECORDS - CPT LOGS
    The soil types, soil properties and stratigraphies can be easily defined in DeepFND through user-friendly dialogs. In DeepFND we can create an unlimited list of soils and define all soil properties quickly. The software provides several estimation tools (SPT Estimator and partial estimation tools for each property using scientific methods and equations). In DeepFND we can add directly SPT Records and CPT Logs, which can be used from the software to estimate various soil properties. Define list of soil types Define list of stratigraphies (borings) Soil properties estimation tools SPT Records CPT Logs
  • SUPERIOR INTERACTIVE INTERFACE
    DeepFND is an extremely user-friendly software, which offers an interactive model interface. In the model area we can create different loading stages and define all project parameters (external loads on the pile head, pile section properties etc.) graphically. All items on the model area (boring, pile, external loads) can be accessed and their properties can be defined through user-friendly dialogs.
  • AUTO MODEL GENERATION & OPTIMIZATION
    DeepFND Model Wizard can be used to create any deep foundation model in minutes. We can use the Wizard tabs to define all project parameters (analysis settings, pile type and structural section, external loads and design standards). The Wizard creates the model automatically, saving us a lot of time and effort for the initial creation. DeepFND has an automatic length optimization tool. The software can use a defined step to increase the pile depth up to a defined depth limit, calculating the axial tension and compression capacity in each step.
  • EXPORTED REPORTS IN PDF & WORD
    DeepFND can generate extensive reports for all examined design sections (piles) and loading stages. The reports in HelixPile are totally customizable - the end user can always select all the report sections included in the final report. DeepFND reports can include tables and graphs with all examined model properties and calculated results. We can also choose to include to the report all structural design equations and calculation procedure. The DeepFND reports can be previewed, exported to PDF or exported to Word format, so they can be further edited by the user. Select Design Sections to Report Select Construction Stages to Report Customize Report Graphs Define Report Layout Define Report Sections Possibility to Report Equations and Stage Calculations Preview the Report Export Reports in PDF and Word Formats
  • STRUCTURAL - GEOTECHNICAL CODES & STANDARDS
    Deep excavations require compliance with both structural and geotechnical standards. We have you covered with many in
