All-In-1 Foundation Pile Design Software - DeepFND

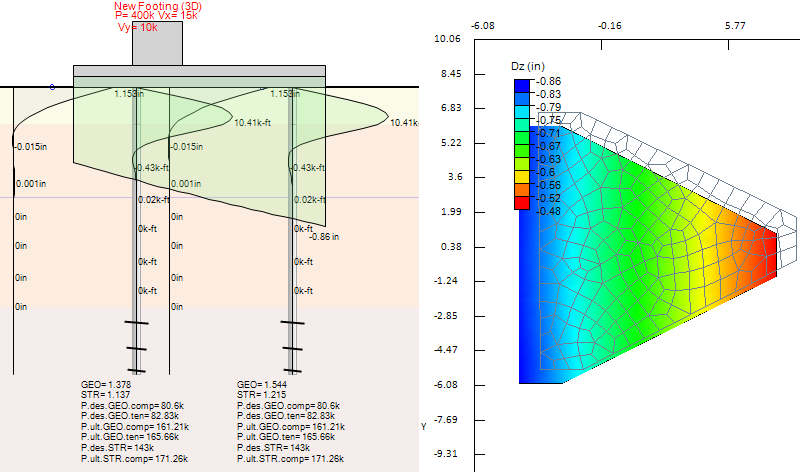

Still Using 3 Different Software for your Foundation Pile Design?


Pile foundation design can be time-consuming as it involves multiple smaller but still complex side tasks. From design code challenges, soil uncertainty, requirements for sophisticated analysis to capture complex phenomena, installation disturbance, pile to pile interaction, wave propagation, etc, are all independent tasks that can be rarely dealt with under the same software umbrella. As a result, geotechnical engineers are often forced to use multiple different software programs and spreadsheets complementing each other, check different alternatives and come up with the most efficient pile configurations.


Over the last few years, Deep Excavation has released and constantly improving our foundation pile design software, DeepFND, allowing our users to perform all required pile analysis and design calculations in a single software suite!


With DeepFND Software you can:


- Design Single Piles of any Pile Section (Helical and Non-Helical Piles)


Still Using 3 Different Software for your Foundation Pile Design?

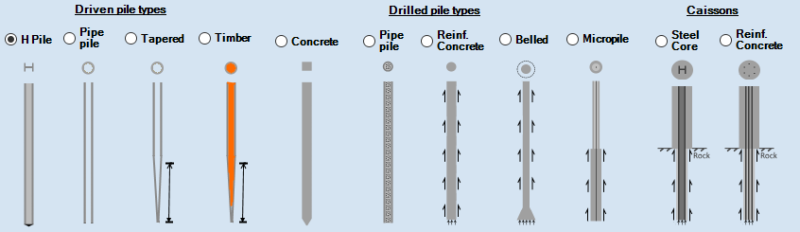

Figure 1: Non-Helical Pile Section Types in DeepFND

Still Using 3 Different Software for your Foundation Pile Design?

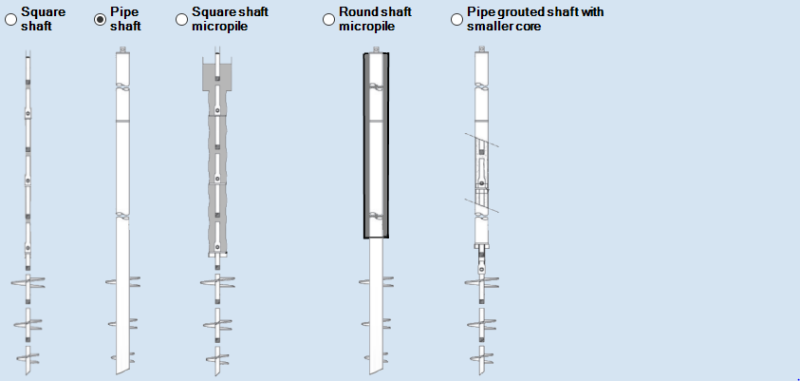

Figure 2: Helical Pile Section Types in DeepFND

- Perform Axial and Lateral Pile Analysis in a Single Suite

Still Using 3 Different Software for your Foundation Pile Design?

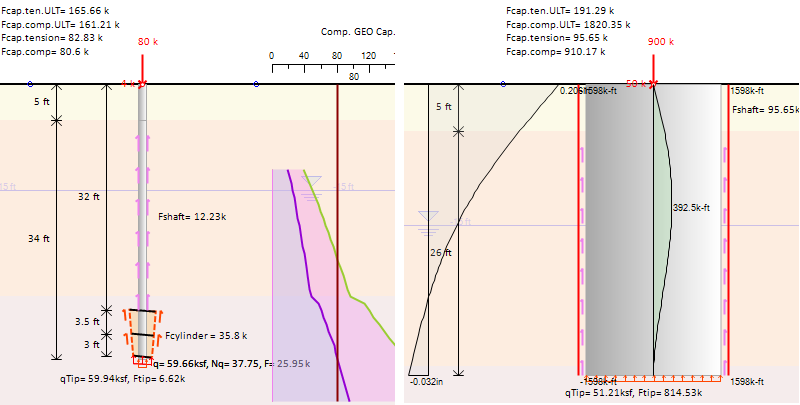

Figure 3: Helical Pile Bearing Capacity – Concrete Pile Moment and Displacement Diagrams

- Perform Structural & Geotechnical Design of the Foundation Piles

Still Using 3 Different Software for your Foundation Pile Design?

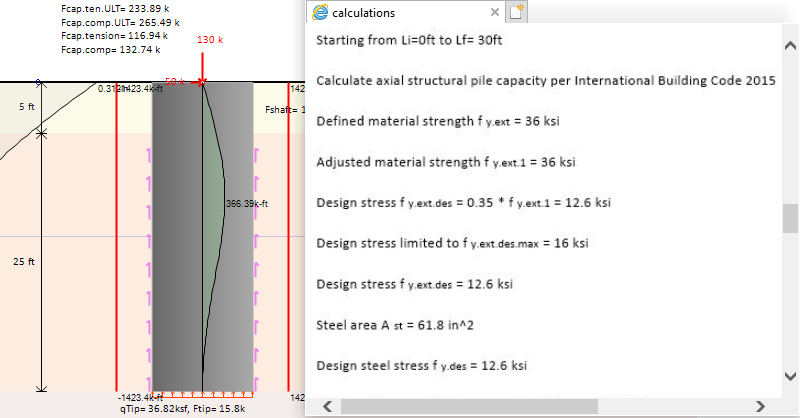

Figure 4: DeepFND – Structural Checks on a Driven Steel Foundation Pile

- Design Single Piles, Pile Groups & Pile Rafts

Still Using 3 Different Software for your Foundation Pile Design?

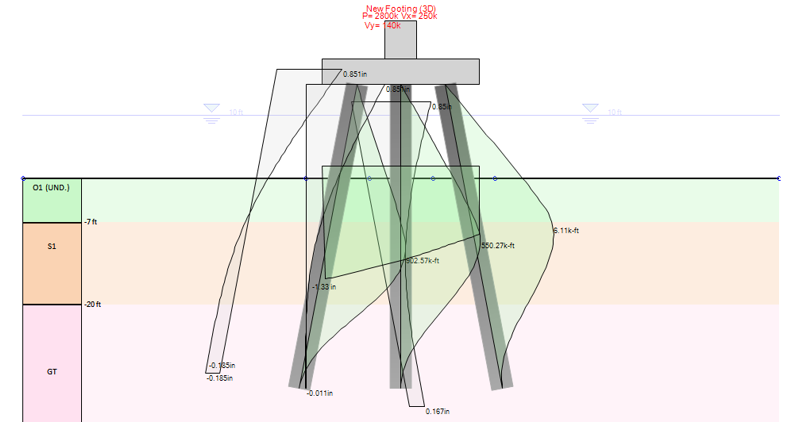

Figure 5: DeepFND – Triangular Pile Cap with Helical Piles

- Pile Cap Analysis with PY Springs and 3D Finite Element Methods

Still Using 3 Different Software for your Foundation Pile Design?
Figure 6: DeepFND – Rectangular Pile Raft with Drilled Caisson Piles

- Pile Cap Analysis with PY Springs and 3D Finite Element Methods

Still Using 3 Different Software for your Foundation Pile Design?

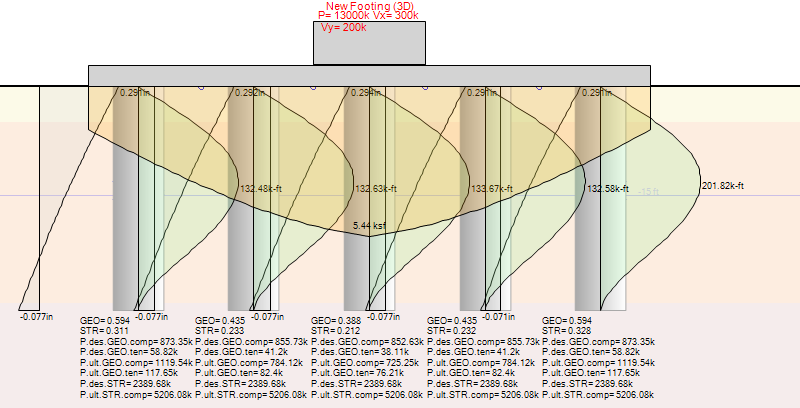

Figure 6: DeepFND – Pile Group Analysis with PY Springs

Still Using 3 Different Software for your Foundation Pile Design?

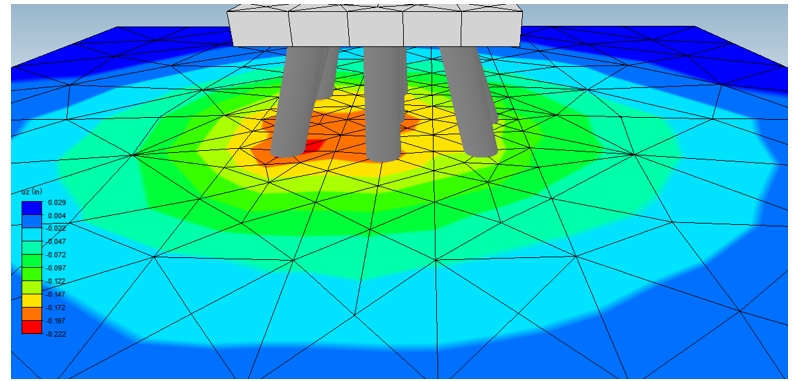

Figure 8: DeepFND – Pile Group Analysis with 3D FEM Approach



ALL-IN-1 Suite, Packed with Knowledge, Sided with Great Technical Support, Our Software Satisfies Your Needs!




Still Using 3 Different Software for your Foundation Pile Design?

Design Foundation Pile Systems in Minutes!
