How can I perform seepage analysis in DeepEX?
- 4 days ago
- 2 min read
Updated: 3 days ago
Seepage analysis is a critical component in the design and execution of deep excavation projects. Understanding and managing the flow of water through soil or rock around the excavation site is vital to maintaining stability and preventing excessive water inflow, which could compromise the integrity of the excavation. In this context, DeepEX our advanced shoring and tunnel design software-implements the full water flow analysis method that allows the calculation of the seepage load.

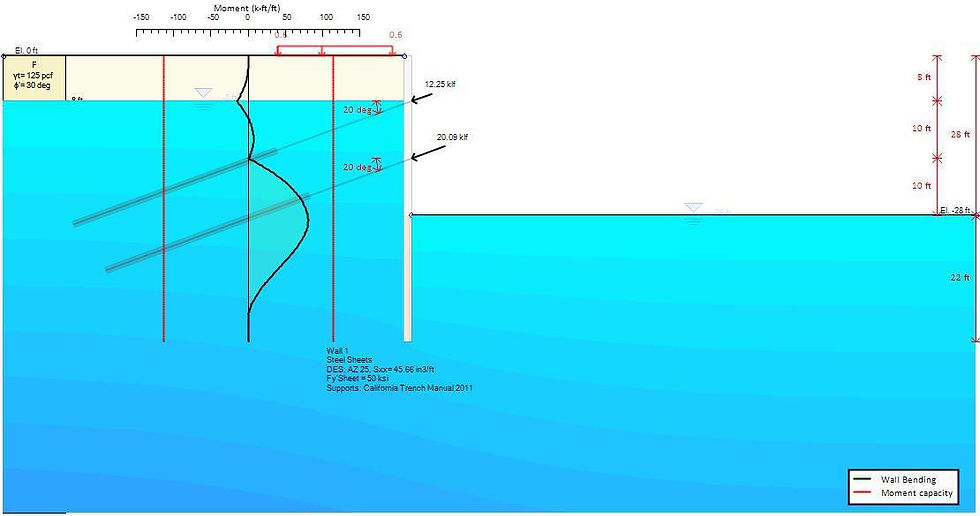

Figure 1: Water pressures in DeepEX software – Seepage analysis
Performing Seepage Analysis with DeepEX
DeepEX simplifies the process of seepage analysis by integrating both analytical and numerical methods, allowing users to accurately model and assess groundwater conditions. Here’s how DeepEX can be utilized for seepage analysis:
- Defining Stratigraphy and Soil Parameters:
Users can define the desired stratigraphy, specifying different soil layers and their properties. Key parameters include soil permeability and strength, which are essential for accurate seepage analysis.

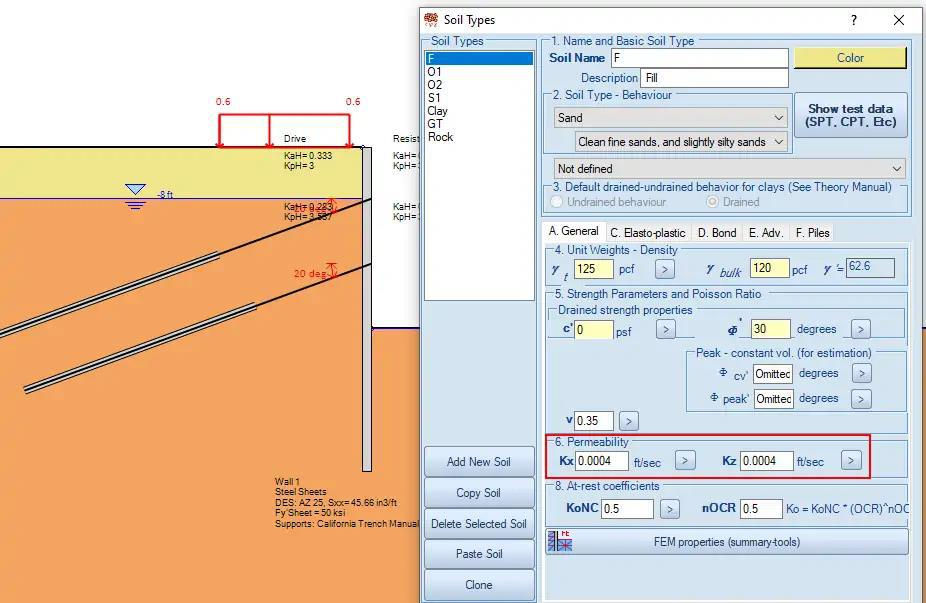

Figure 2: Permeability parameters for each soil type in DeepEX
- Selecting Analysis Methods:
2D Flownet Analysis: Users can select the finite differences method to perform a flownet analysis during the limit equilibrium analysis. This method calculates the water flow and seepage load on the excavation side, providing valuable insights into potential seepage risks.

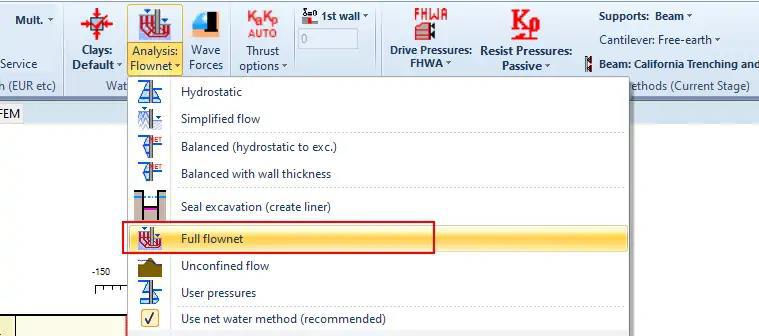

Figure 3: Full flownet analysis option in DeepEX
- Calculation and Interpretation:
DeepEX calculates the water flow and seepage loads based on the selected methods and defined parameters.
The software generates detailed reports and visualizations, helping engineers to interpret the results and make informed decisions.

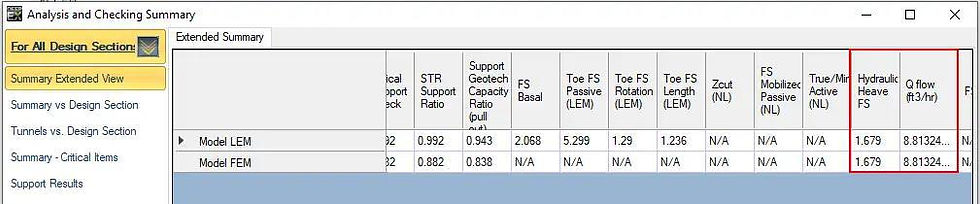

Figure 4: Calculated seepage load and hydraulic heave safety factor – DeepEX software
Based on the analysis, engineers can design appropriate seepage control measures such as cutoff walls, drainage systems, and dewatering schemes.
DeepEX provides tools to model and optimize these solutions, ensuring they are effective and efficient. Seepage analysis is a fundamental aspect of deep excavation projects, crucial for ensuring stability and safety. DeepEX stands out as a powerful tool, offering both analytical and numerical methods to accurately model groundwater conditions and assess their impact on excavations. By leveraging DeepEX’s capabilities, engineers can effectively manage seepage, design robust control measures, and ensure the success of their deep excavation projects.
Let us show you how to reduce your design time by up to 90%!
