Can I design a circular shaft DeepEX?

DeepEX can design circular shafts, either cantilever, or supported by ring beams and cap beams.

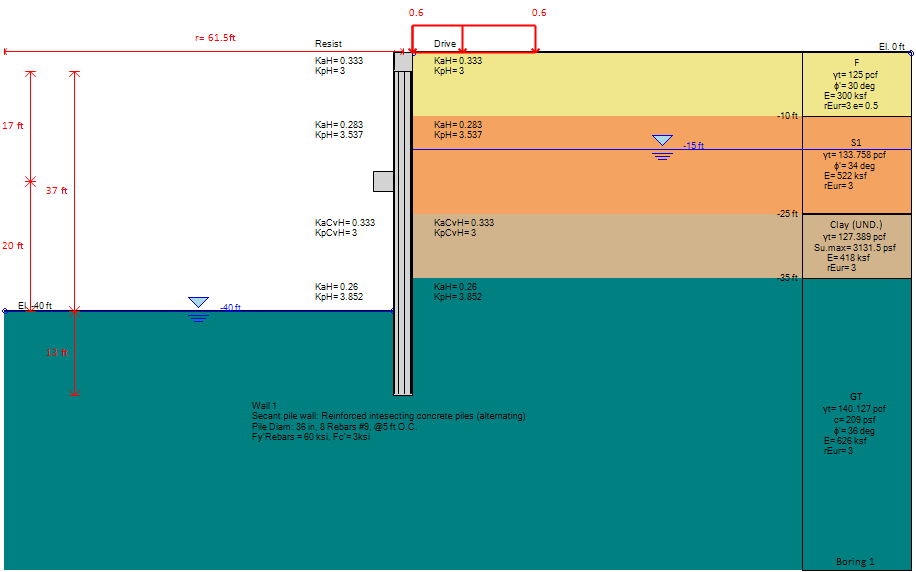

Fig.: Circular excavation with cap beam and ring concrete support in DeepEX

A circular shaft model can be created with the DeepEX Model Wizard, as shown below:

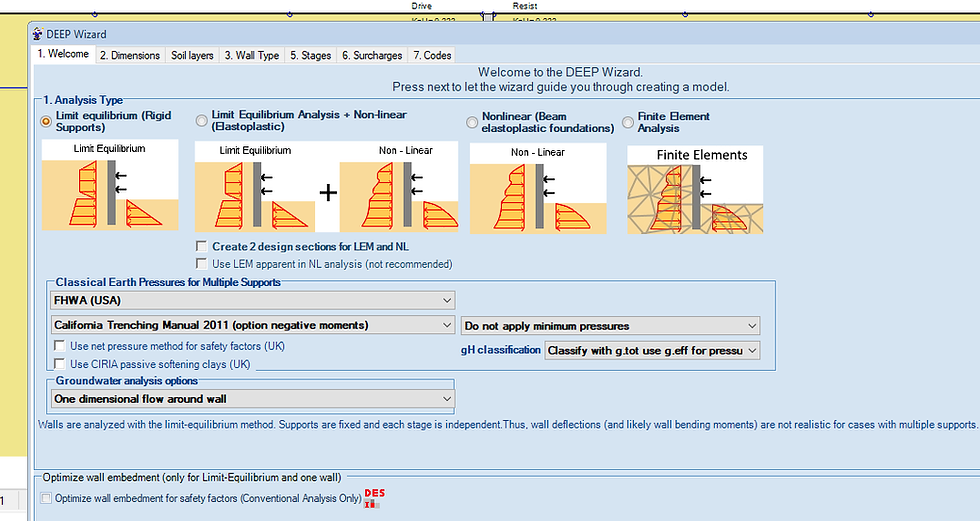

A. Open DeepEX Wizard and select the analysis method. For circular shaft models, the software will by default select the Non-Linear analysis method with elastoplastic Winkler springs.

Fig.: DeepEX Wizard – Welcome tab – Select analysis method

B. Select the project type and define the basic project properties (final excavation depth, wall length, circular shaft radius, tip of the wall elevation and water table).

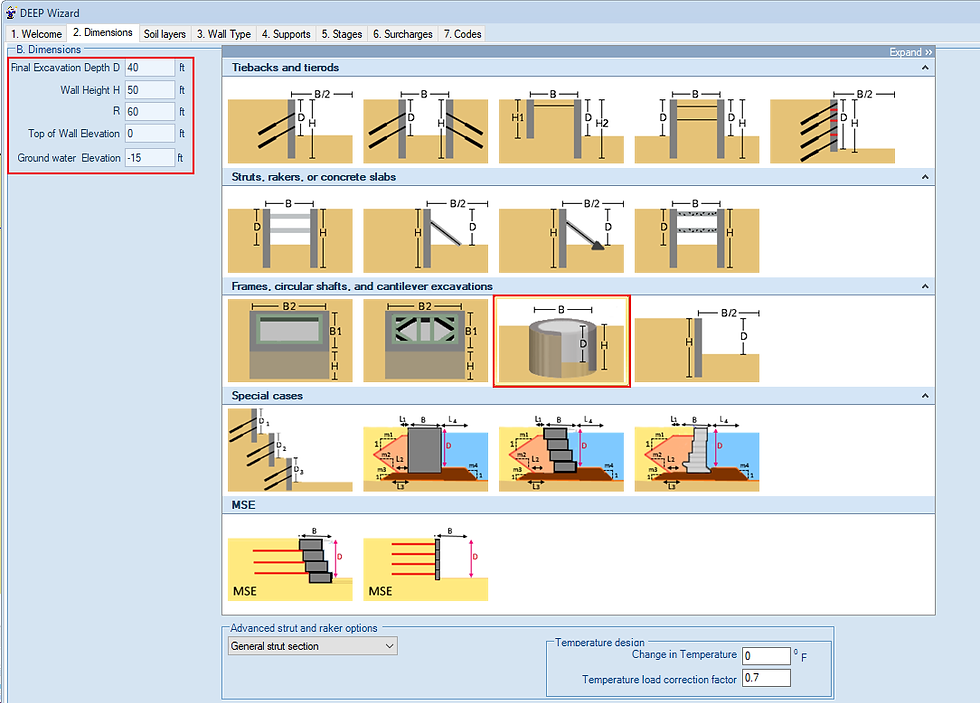

Fig.: DeepEX Wizard – Dimensions tab – Select project type

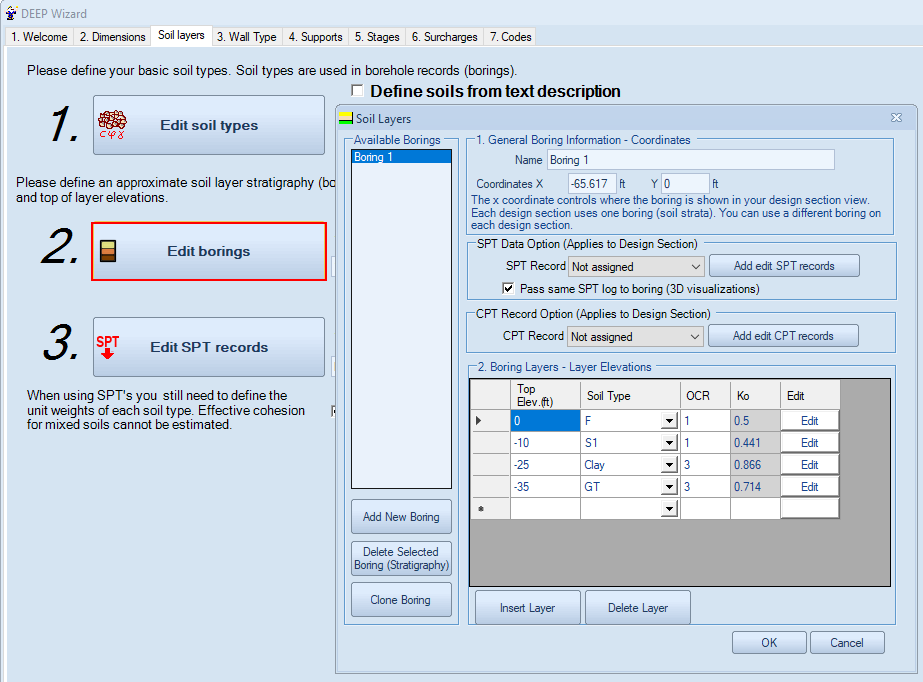

C. Define the project soil properties and stratigraphy.

Fig.: DeepEX Wizard – Soil Layers tab – Edit soils and borings

D. Define the wall section properties. Here you can select the wall type and define the structural section to be used in the particular model.

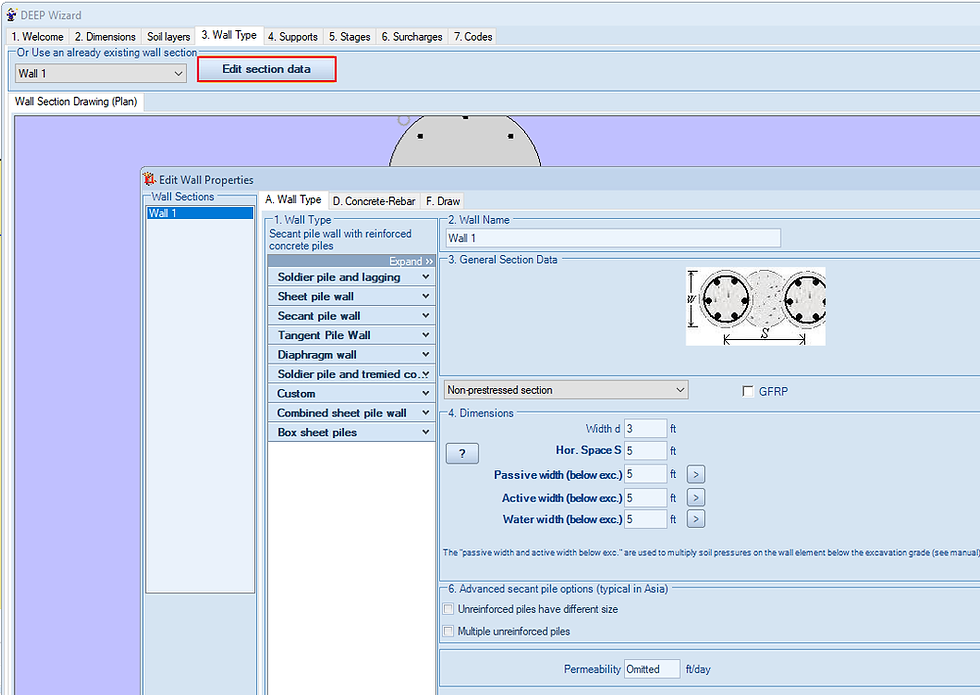

Fig.: DeepEX Wizard – Wall Type tab – Edit wall section properties

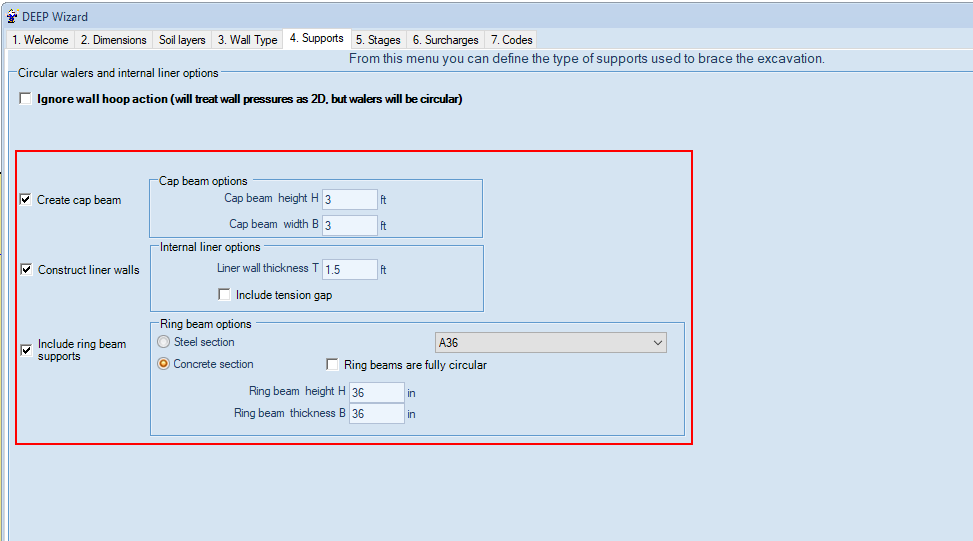

E. Define supports (cap beam, liner walls, ring beam supports). You can select whether to include the supports or not, as well as define the support dimensions.

Fig.: DeepEX Wizard – Supports tab – Add/edit beam supports & liner walls

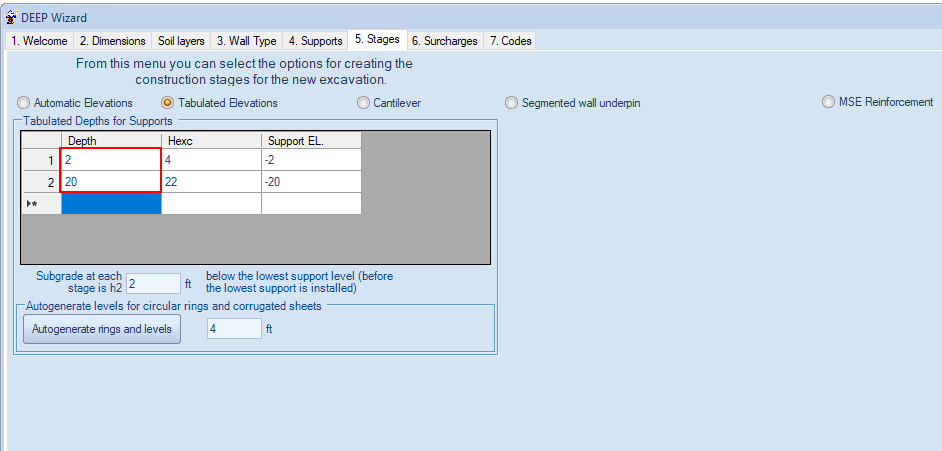

F. Define the depth for each support level (for ring beams).

Fig.: DeepEX Wizard – Stages tab

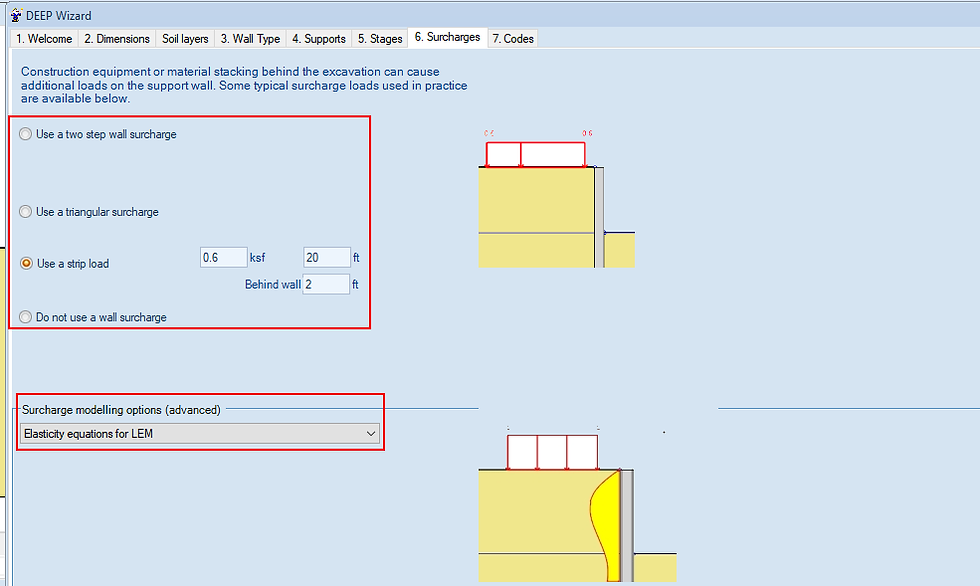

G. Define external surcharges. Here you can select the type, position and magnitude to be added in the generated model.

Fig.: DeepEX Wizard – Surcharges tab

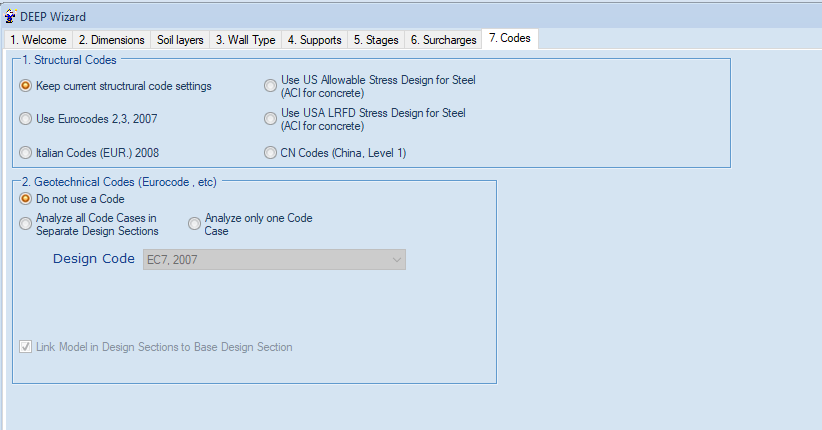

H. Define structural and geotechnical codes.

Fig.: DeepEX Wizard – Codes tab

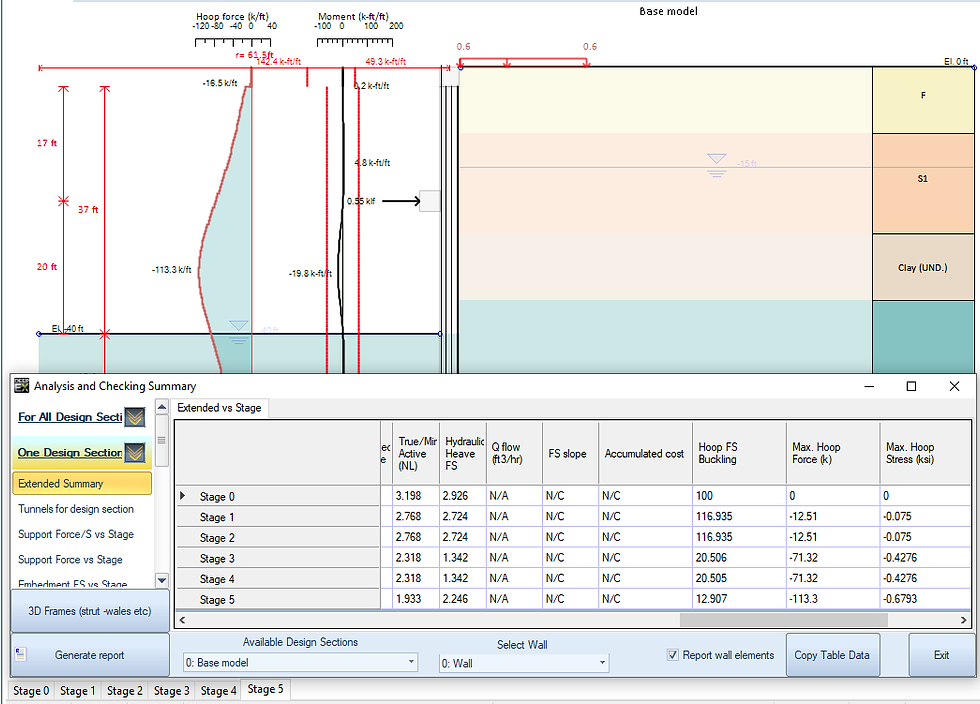

After the analysis you can review valuable results for each construction stage, including the hoop forces, the hoop buckling safety factor and more.

Fig.: Circular shaft in DeepEX – Non-Linear analysis results

---
