Enhancing Geotechnical Design Through Cone Penetration Testing
- Oct 13, 2023
- 4 min read
Utilizing CPT Data for Earth Retaining Structures, Deep Foundations, and Marine Infrastructure
Introduction
The performance and reliability of geotechnical structures, including earth retaining systems, deep excavations, pile foundations, embankments, and quay walls, are fundamentally dependent on an accurate characterization of subsurface conditions. The selection of representative soil parameters remains one of the most critical aspects of geotechnical design, directly influencing stability assessments, serviceability predictions, and overall project risk.
Traditional site investigation techniques, while indispensable, often present challenges related to data continuity, interpretation, and cost. In recent decades, Cone Penetration Testing (CPT) has become one of the most widely adopted in-situ investigation methods, providing high-resolution subsurface data that can significantly enhance the reliability of geotechnical analyses.
By offering continuous profiling of soil behavior with depth, CPT enables engineers to develop a more comprehensive understanding of subsurface stratigraphy and engineering properties, facilitating improved design decisions for a broad range of geotechnical applications.
The Value of Cone Penetration Testing
Cone Penetration Testing is an in-situ investigation technique in which an instrumented cone is advanced into the ground at a constant penetration rate while continuously recording soil response parameters.
Depending on the testing configuration, CPT investigations typically provide measurements of:
Cone tip resistance (qc)
Sleeve friction (fs)
Pore water pressure (u)
These measurements form the basis for soil behavior classification and the estimation of numerous engineering parameters through established empirical and semi-empirical correlations.
For granular soils, CPT data can be used to estimate properties such as:
Effective friction angle (φ′)
Relative density (Dr)
Constrained modulus (M)
For cohesive soils, CPT interpretation methods allow estimation of:
Undrained shear strength (Su)
Overconsolidation ratio (OCR)
Compressibility characteristics
Because CPT measurements are collected continuously with depth, the resulting dataset often provides a level of detail and consistency that exceeds that of conventional discrete sampling methods. This enhanced resolution can lead to improved identification of stratigraphic boundaries, detection of weak layers, and more reliable parameter selection for geotechnical analyses.
Integration of CPT Data into Geotechnical Design Software

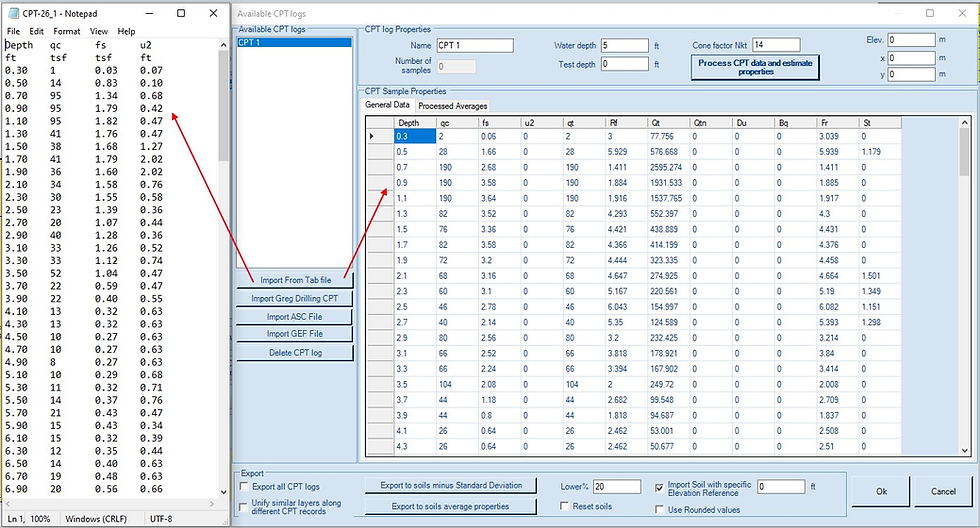

Modern geotechnical software platforms increasingly incorporate CPT processing capabilities directly within the design workflow. Solutions such as DeepEX, DeepFND, HelixPile, SnailPlus, RetainEX, and QuayWalls allow engineers to import CPT records directly from standard tab-delimited files, eliminating manual transcription and reducing the potential for data-entry errors.
Following import, the software processes the CPT data using established interpretation methodologies and correlations to generate engineering soil profiles and estimate design parameters. The resulting information can be used to:
Define subsurface stratigraphy
Differentiate soil behavior zones
Estimate engineering soil properties

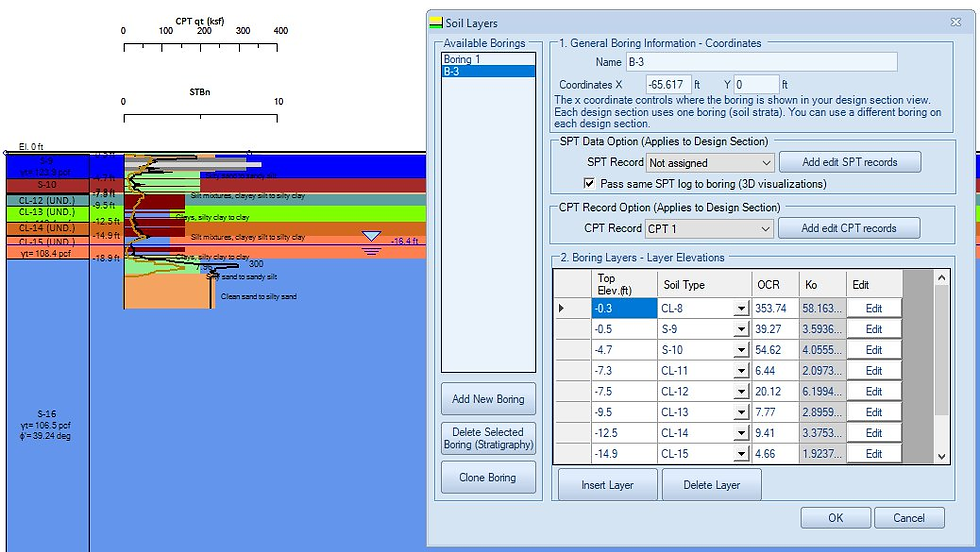

Develop borehole profiles for design analyses
Support numerical and analytical modeling workflows
The direct integration of CPT records into the design environment streamlines project development while ensuring consistency between site investigation data and subsequent engineering analyses.
This capability is particularly valuable for projects involving deep excavations, retaining structures, pile foundations, anchored systems, and marine infrastructure, where the accuracy of soil characterization directly affects both safety and economy.
Statistical Evaluation of Soil Property Estimation
While empirical correlations derived from CPT measurements provide valuable estimates of engineering parameters, uncertainty remains an inherent component of geotechnical design. Recognizing this reality, advanced software tools increasingly incorporate statistical evaluation procedures to support parameter selection.

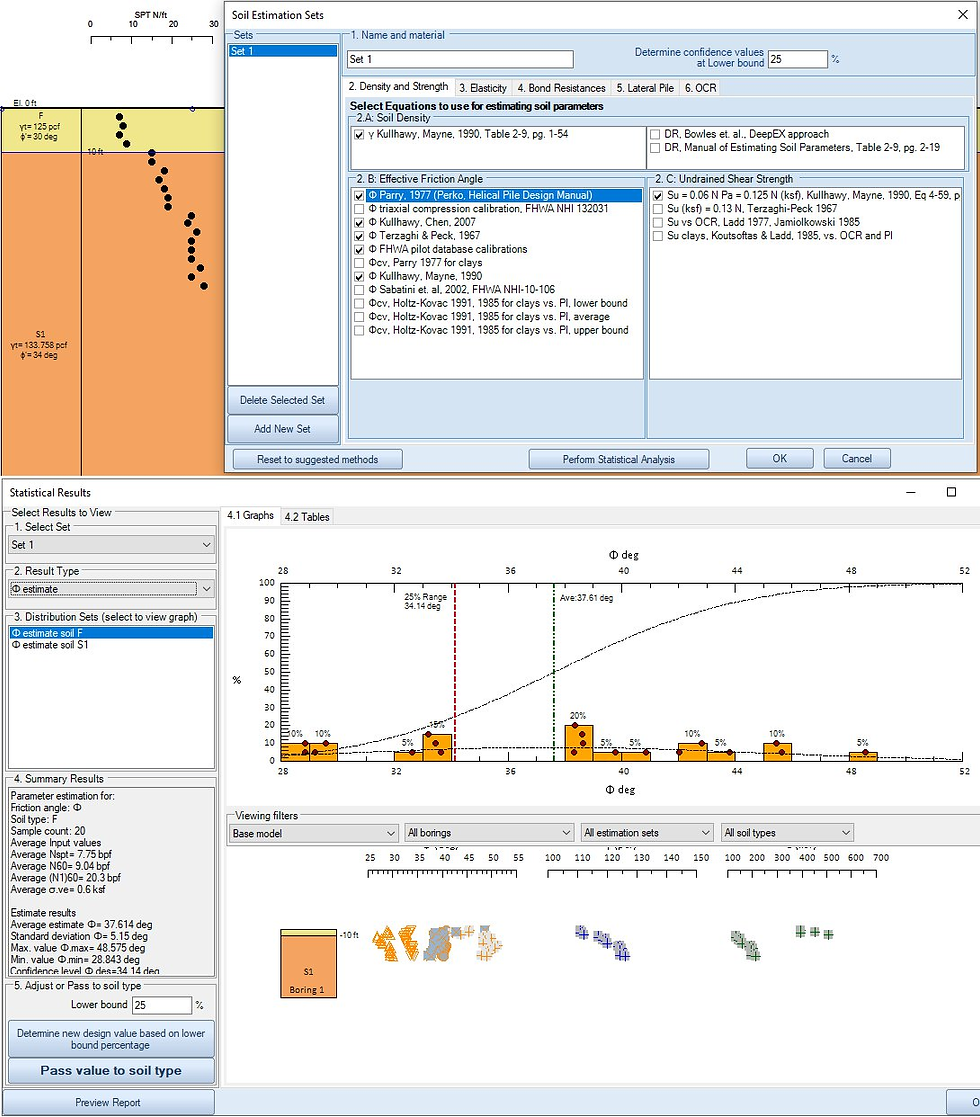

The Statistical Soil Estimation module allows engineers to evaluate multiple CPT interpretation methods simultaneously and compare the resulting parameter estimates. Rather than relying on a single correlation, users can assess the variability associated with different established methodologies and quantify the range of predicted soil properties.
The statistical analysis typically includes:
Mean values
Standard deviations
Confidence intervals
Method-to-method variability
Distribution of estimated parameters
This approach enables a more rational assessment of uncertainty and supports the selection of representative design values based on project-specific requirements and risk considerations.
For critical projects, such analyses can provide valuable insight into the sensitivity of design assumptions and contribute to a more robust geotechnical design process.
By combining multiple interpretation methodologies with statistical evaluation techniques, engineers can make better-informed decisions regarding parameter selection and improve confidence in subsequent design analyses.
Applications Across Geotechnical Engineering
The integration of CPT-based soil characterization into modern geotechnical software provides significant benefits across numerous applications, including:
Earth retaining structures
Deep excavations
Anchored and braced support systems
Shallow and deep foundations
Pile load capacity assessments
Ground improvement projects
Embankments and slopes
Quay walls and waterfront structures
Tunnel and underground construction
As project complexity continues to increase, the ability to efficiently process large volumes of subsurface data and translate them into reliable engineering parameters has become increasingly important.
Conclusions
Cone Penetration Testing has become an essential component of modern geotechnical site investigation programs due to its ability to provide continuous, high-quality subsurface data. When combined with advanced interpretation methods and integrated design software, CPT records offer a powerful framework for developing reliable soil models and supporting engineering decision-making.
The direct incorporation of CPT data into geotechnical design workflows enhances efficiency, reduces uncertainty, and promotes greater consistency between site investigation findings and analytical models. Furthermore, the application of statistical evaluation techniques provides engineers with a more comprehensive understanding of parameter variability, enabling more informed and defensible design choices.
As geotechnical projects continue to demand higher levels of accuracy, efficiency, and risk management, CPT-based characterization and integrated digital design tools will remain fundamental components of modern engineering practice.
