How to Minimize Geotechnical Uncertainty

Determine soil parameters when you don't have all the data.


Geotechnical uncertainty is a major issue in deep excavation and geotechnical design. Minimizing uncertainty and estimating design soil property presents a major challenge to engineers. Most projects have only SPT test data, and different methods can result in widely varying strength estimates. Reviewers often ask for justification of estimated soil strength parameters, so how does one meet these challenges?


In DeepEX 2020 we addressed this major challenge by offering a solid framework for estimating soil parameters from well accepted correlations, from SPT, CPT, index properties, and other tests. We can then compare soil property variability with depth, in plan-view, and make informed decisions. Then design soil properties can be determined based on a statistical analysis by setting the desired lower bound values.


While there is no substitute for good laboratory and insitu strengths, very often such data is simply missing or the client is not willing to pay for it. The following figures demonstrate how we have met these challenges to offer you a solution that has your back, fully referenced, with equations, and graphs. The solution steps are:


1) Define your borehole layers and major soil types based on available geotechnical investigations


2) Define available test data, such as SPT, CPT, Plasticity Index tests, etc.


3) Select and investigate established correlations


4) Review parameter variabilty with different equations, depth, or in plan


5) Review parameter variability vs. the database recommendations


6) Select lower bound level values, typically at 5% to 25%. For example, a 5% lower bound design value represents that only 5% of the soil estimated parameters are smaller than the design level.


7) Include report with full equation references in your calculations


We are not stopping there, a new geotechnical database service by Deep Excavation will be available early in 2020. This interconnected online database will allow you to reference and import actual soil profiles and select based on a range of parameters.


This is the way forward for geotechnical engineering, this is the way forward for deep excavation design.

Determine soil parameters when you don't have all the data.

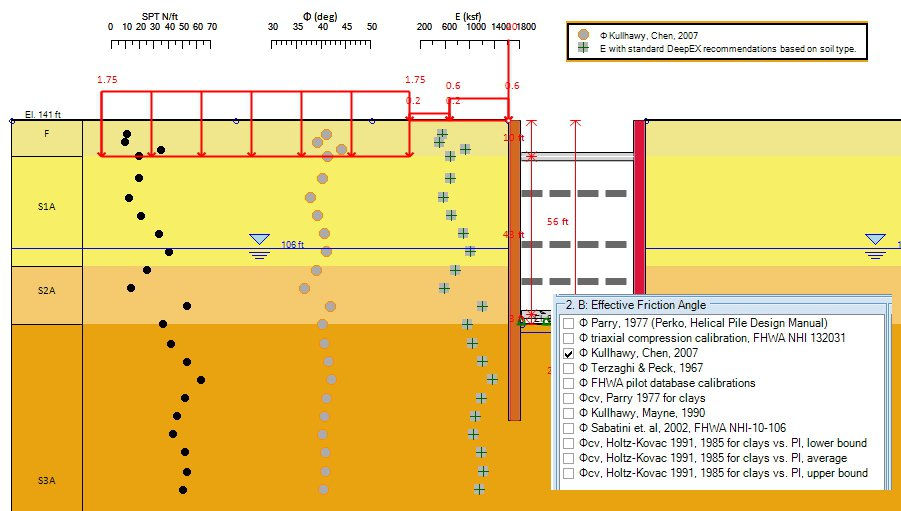

Figure 1: SPT test data vs. estimated friction angle and elasticity modulus

Determine soil parameters when you don't have all the data.

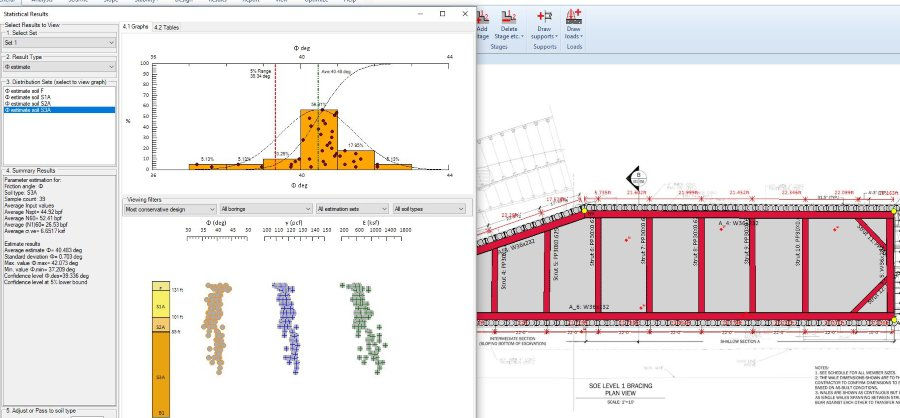

Figure 2: Statistical property estimation from a number of available boreholes and SPT test data

Determine soil parameters when you don't have all the data.

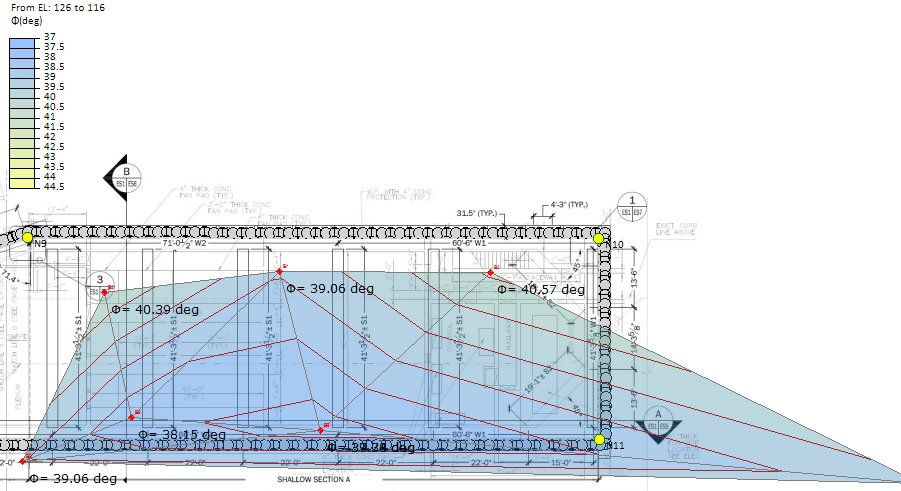

Figure 3: Contours of estimated friction angle within a specified elevation zone
