Wave Loads on Marine Structures

The Impact of Wave Loads on Marine Structures Supported by Foundation Piles


1. Introduction

Marine structures, such as piers, jetties, and offshore platforms, rely on robust foundation piles to ensure their stability and integrity. One of the critical factors that must be considered in the design of these structures is the impact of wave loads. Understanding and incorporating wave loads into the design process is essential to prevent structural failures and ensure long-term performance. This article explores how wave loads affect marine structures over foundation piles, the importance of including these loads in the analysis, and how such projects can be efficiently designed using our DeepFND - Deep Foundations Design Software.


Wave loads on an offshore platform over foundation piles

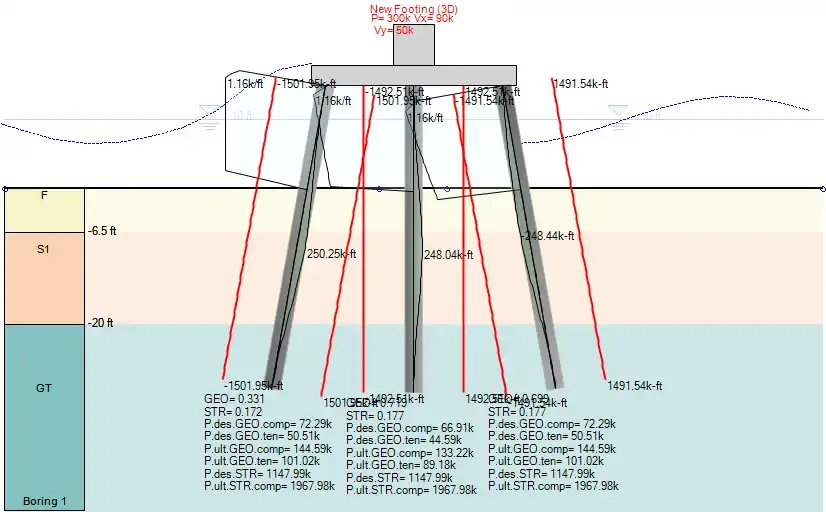

Figure 1: Wave loads on an offshore platform over foundation piles – Model in DeepFND software



2. Understanding Wave Loads on Foundation Piles

Wave loads are dynamic forces exerted by waves as they interact with the structural elements of marine constructions. These forces can be substantial, especially during severe weather conditions, and include:

Hydrodynamic Pressure: Pressure exerted by the motion of water particles against the pile surface.

Inertia Forces: Resulting from the acceleration and deceleration of water masses around the pile.

Drag Forces: Due to the relative motion between water and the pile, creating frictional resistance.

Wave Impact Loads: High-magnitude forces when waves break directly onto the pile, causing sudden and significant impact.



3. Importance of Including Wave Loads in Analysis

Structural Safety: Neglecting wave loads can lead to underestimating the forces acting on the piles, risking structural failures during extreme conditions.

Serviceability: Proper analysis ensures that the structure remains functional and safe under normal and storm wave conditions.

Durability: Wave loads contribute to fatigue in structural elements. Including them in the design helps in planning for adequate material strength and maintenance schedules.

Economic Efficiency: Accurate load analysis prevents overdesigning, which can lead to unnecessary construction costs, and underdesigning, which can result in costly repairs or catastrophic failures.



4. Key Considerations in Wave Load Analysis

Wave Characteristics: Wave height, period, and length directly influence the magnitude of forces.

Pile Geometry and Orientation: The shape, diameter, and alignment of piles affect how forces are distributed.

Water Depth: Influences wave behavior and load distribution along the pile length.

Environmental Factors: Tidal variations, currents, and seabed conditions can alter wave impact.



5. Designing with DeepFND - Deep Foundations Design Software

DeepFND is the only software that integrates axial and lateral pile analysis, structural and geotechnical design, and the analysis of single piles, pile groups, and pile rafts in one comprehensive suite. Here’s how DeepFND supports wave load analysis for marine structures:

Hydrodynamic Load Modeling: DeepFND incorporates models for hydrodynamic pressure, inertia, and drag forces, allowing for precise simulation of wave loads on piles.

Wave Theory Integration: Supports linear and non-linear wave theories to accurately estimate wave forces under various conditions.

Dynamic Analysis Capabilities: Evaluates the dynamic response of piles to cyclic wave loading, ensuring that resonance issues are adequately addressed.

Comprehensive Design Checks: Performs rigorous structural and geotechnical design checks, ensuring that piles meet safety, stability, and durability criteria.

User-Friendly Interface: Facilitates efficient project setup and analysis, allowing engineers to focus on optimizing design solutions rather than managing complex calculations.


Wave load design methods in DeepFND software

Figure 2: Wave load design methods in DeepFND software


Selecting a design wave from the Coastal Engineering Manual

Figure 3: Selecting a design wave from the Coastal Engineering Manual – DeepFND software



6. Conclusion

Wave loads are a critical factor in the design of marine structures supported by foundation piles. Including these loads in the analysis is essential for ensuring the safety, functionality, and durability of the structures. DeepFND - Deep Foundations Design Software offers a robust platform for engineers to perform comprehensive analyses, integrating axial and lateral pile assessments with advanced hydrodynamic modeling. By leveraging DeepFND, engineers can achieve reliable and cost-effective design solutions for marine structures, safeguarding them against the dynamic challenges posed by wave loads.
