Cantilever Walls - Design with DeepEX

Cantilever Walls in DeepEX


Cantilever excavations can be designed with DeepEX software in the most efficient way. In DeepEX, we can design and optimize retaining walls supporting cantilever excavations in 3 simple steps:


1. Create our model in minutes in the software graphical interface, or using the powerfull model wizard (all construction stages).


2. Define the structural section of the wall.


3. Run the analysis, review the results in each stage and optimize the model (manually or with the use of the DeepEX autimatic optimization tools).


The following paragraphs present how we can follow these steps within the software and achieve an efficient model optimization in minutes.

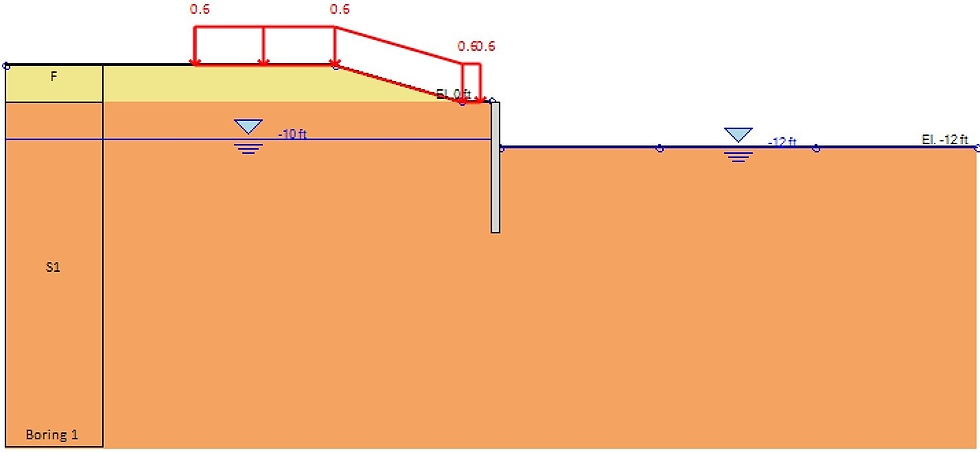

Figure: A Cantilever excavation simulated in  DeepEX Software


Step 1: Create the Model (All Construction Stages)


In DeepEX we can graphically add construction stages and draw the model on the model area stage by stage, or use the model wizard to create a model with all construction stages in seconds. Either way, we need to create a detailed staging, starting from at rest conditions in an initial stage, and then step by step generate new stages with each excabation and support installation level. DeepEX will analyze and present results for each stage, allowing us to review the full model construction process, identify the most critical stage and optimize our structural sections and support locations in the most efficient way.

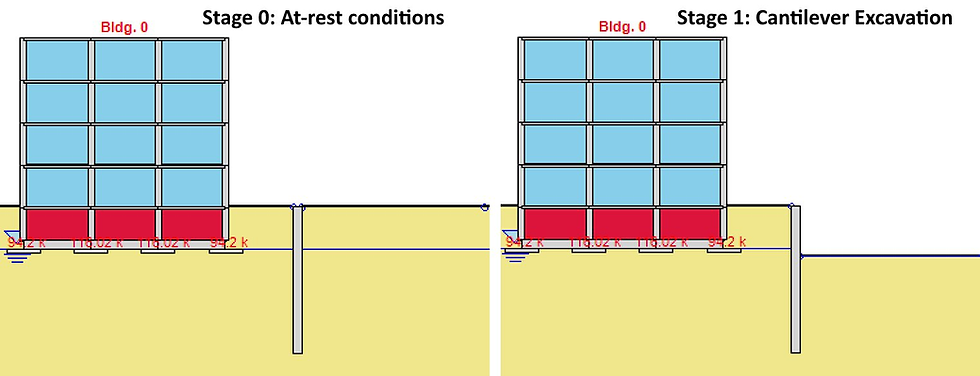

Figure: Cantilever Excavation Adjacent to a Building - Construction Stages in  DeepEX Software




Wish to see how the program can cover your exact needs?







Step 2: Define the Wall Type and Structural Section


Defining the Wall Type

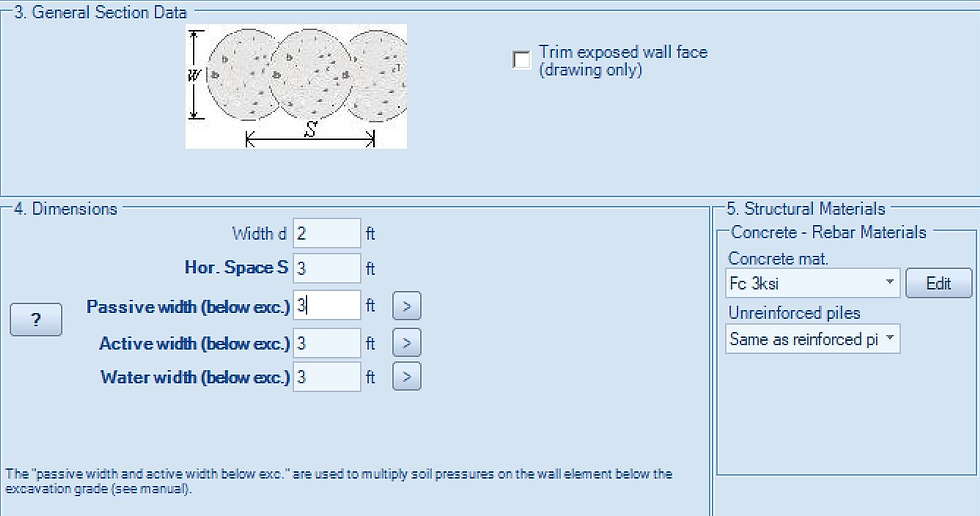

At any time, we can access and edit the structural section of our walls on the model area, or through the related tab of the model wizard. There, we can define the wall section type and define the wall section properties (size, reinforcement, materials).



Step 3: Review the Results and Optimize the Model

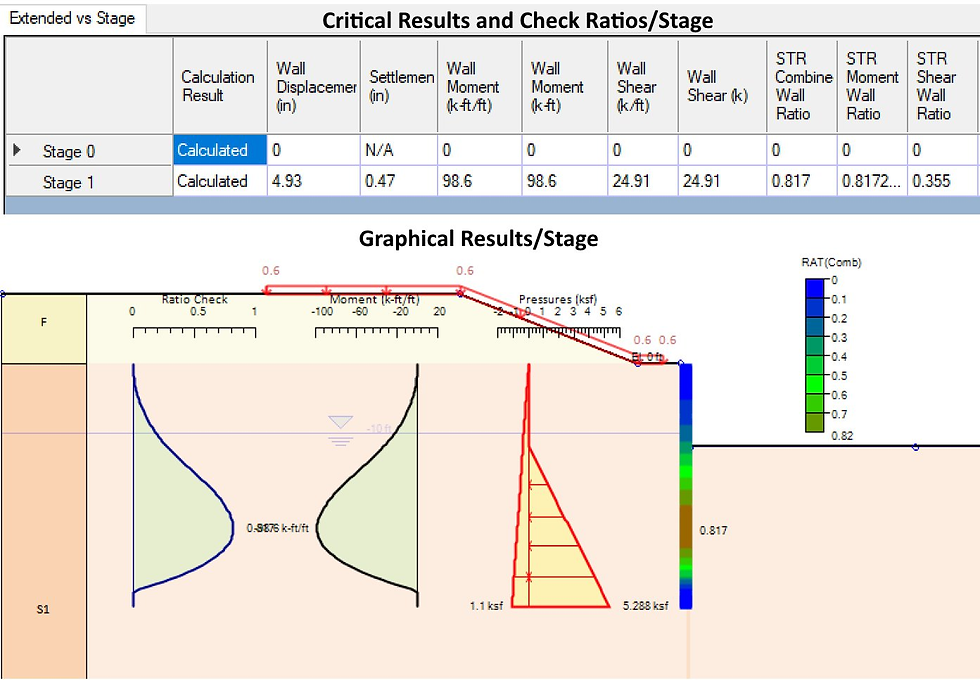

DeepEX can analyze any deep excavation model with several implemented analysis methods (classical Limit Equilibrium, Non-Linear Analysis with elastoplastic springs and Finite Element Analysis). After the analysis is completed, DeepEX software presents all calculation results in tables and in graphs on the model area for each construction stage. We can review all calculated stresses, moment and shear diagrams along with the structural capacities, the wall embedment safety factors and more. This way, we can have a great overview of all structural items designed by the program for each stage, and take important decisions for the efficient model optimization.

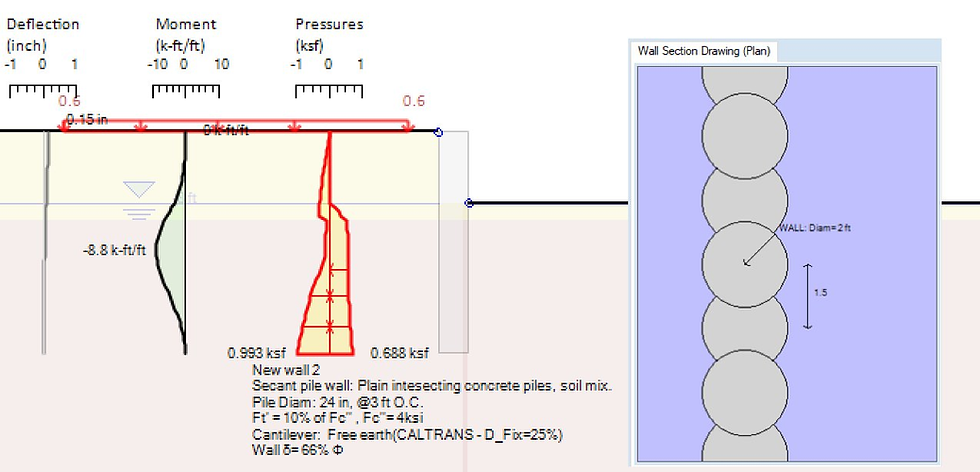

Soil Mix Wall - Cantilever Excavation Design Example









Let us show you how to design a deep excavation in minutes!
