Evaluation of an Anchored Excavation in Toronto

A. INTRODUCTION

In this case study we will evaluate a 14 m deep excavation supported by an anchored bored soldier pile wall (metric W610X82 steel beams in 0.91m bored holes @3.05m spacing). The model is simulated with the DeepEX software program. The excavation was originally studied in a paper by Cao L.F., Peaker S.M., Ahmad S (SPL Consultants Limited, Ontario, Canada). In the original publication, the authors presented their evaluation of the performance of the excavation.

The purpose of this exercise is to evaluate how different deep excavation analysis methods (Limit equilibrium, non-linear with elastoplastic soil springs, and finite elements method) compare to each other, and how close the different methods can approximate the measured moments and displacements in different construction stages.

Field investigation with drilled boreholes revealed that the site stratigraphy consists of about 9.3m stiff silts and clays, over a layer of shale and limestone. The groundwater table was about 5 m below grade. Assumed soil properties, as presented in the original paper, are summarized in table 1:

Table 1: Assumed Soil Properties (From the original soil investigation as presented in the paper)

(i) Top soil parameters

Excavation in Toronto - Top soil properties

(ii) Rock Parameters

2. Excavation in Toronto - Rock soil properties.png

B. ORIGINAL PROJECT – MEASURED DISPLACEMENTS AND BENDING MOMENTS

According to the original paper, 2 slope inclinometers and 127 reflective targets were installed to monitor the displacement of the shoring walls during and after excavation. The bending moments were deduced based on the inclinometer measurements. The following images illustrate the monitored displacements and deduced moments in different construction stages.

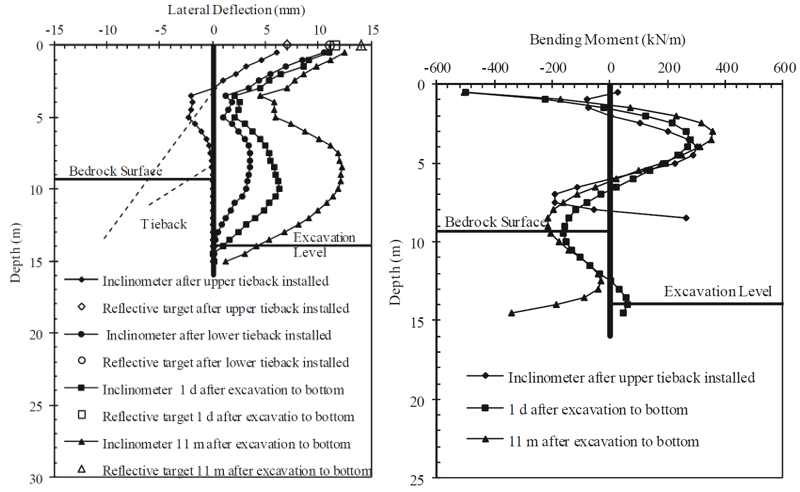

Monitored Displacements and Deduced Bending Moments of the Soldier Pile Wall

Figure 1: Monitored Displacements and Deduced Bending Moments of the Soldier Pile Wall.

C. SIMULATION IN DEEPEX SOFTWARE

The model was simulated in DeepEX – Shoring Design software considering all the construction stages. The following modelling methods are used for the analysis of the excavation: Limit Equilibrium, Non-Linear and Finite Element Analysis. The following image presents the generated model in the last construction stage. Table 2 below presents the soil properties used within the software. Table 3 presents the ground anchor properties.

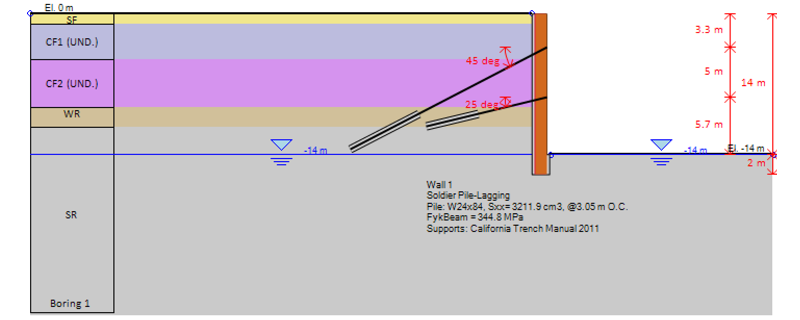

Excavation in Toronto - DeepEX Software Model Last Stage

Figure 2: The model as created in DeepEX software – Last Construction Stage.

Table 2: Soil Properties and Stratigraphy in the DeepEX Model

Elev.
(m)

Soil

Soil Type

ϒtot

(KN/m3)

c’ or Su

(kPa)

φ

(deg)

Soil Model

Eoed
(kPa)

exp (m)

(-)

0

SF (Fill)

Sand

20

0.1

30

Elastoplastic

25000

-

-1

CF1

Clay (Undrained)

-

60

0

Exponential

30000

1

-4.5

CF1

Clay (Undrained)

21

150

0

Exponential

225000

1

-9.3

WR

Rock

25

150

30

Elastoplastic

244000

-

-11.3

SR

Rock

26

250

30

Elastoplastic

3072000

-

Table 3: Ground Anchor Properties in the DeepEX Model

Anchor

Elev.
(m)

Spacing
(m)

Free Length (m)

Fixed Length
(m)

Section
(Strands)

Prestress
(KN)

Tieback 1

-3.3

3.05

9.4

5

7x15mm

1000

Tieback 2

-8.3

3.05

3.9

3

7x15mm

600



D. ANALYSIS ASSUMPTIONS IN DEEPEX

Limit Equilibrium Analysis (LEM)

Earth Pressures (Cantilever Excavation Stage): Active/Passive

Earth Pressures (Stages with supports): FHWA Apparent/Passive

Water Pressures: Simplified Flow

Wall Friction: No wall friction considered

Wall Analysis – Wall Beam: Free Earth Method (Cantilever) - California Trenching and Shoring Manual (CALTRANS)

Excavation in Toronto - Limit Equilibrium Analysis Settings

Figure 3: Limit Equilibrium Analysis Settings – DeepEX Software.

Non-Linear Analysis (NL)

Wall Friction: 80% of the soil friction

Soil Springs Mesh Delta: 0.25m

Soil Models: Hyperbolic (Exponential)

Non-Linear Analysis Settings – DeepEX Software

Figure 4: Non-Linear Analysis Settings – DeepEX Software.

Finite Element Analysis (FEM)

Wall Friction: 66% to 80% of the soil friction

Generated Mesh Density: Coarse

Non-Linear Solver: Krylov-Newton

Soil Model: Soil Hardening Model

E. DEEPEX ANALYSIS RESULTS – PROJECT EVALUATION WITH ALL METHODS

With the Limit Equilibrium method, the software uses the conventional approach to calculate all pressures that are developed on the wall (earth active and passive side pressures, water pressures, external surcharges, seismic loads).Net pressure diagrams are calculated for each stage. The software uses the selected beam analysis method to calculate the wall moment and shear diagrams, the support reactions, and the wall embedment safety factors, as well as to estimate the wall displacements.

With the Non-Linear Analysis method, the software uses elastoplastic soil springs to simulate the connection of the soil with the wall. Soil springs are also used to simulate the connection of the wall with installed supports. The NL method takes into consideration the project construction sequence through staging. . The Winkler springs are initially placed in at-rest conditions, and along the construction stages, springs get activated and deactivated. The software measures the effect on the springs, and from that loading it calculates all results.

the Finite Element Analysis method, both the structural components and the supporting soil medium are included in the simulation model. The soil medium is modelled as a continuum while soil properties are introduced through elastoplastic constitutive laws (Mohr Coulomb, Soil Hardening, Hoek Brown etc). Full soil structure interaction is considered and post processing results within the soil medium can be evaluated.

In the generated models, both the Non-Linear and the Finite Element Analysis methods can effectively simulate the wall displacement behavior and the expected bending moment diagrams in both support installation stages.

DeepEX LEM Analysis Result Graphs Construction Stage 2

Figure 5: LEM Analysis – Wall Moment and Displacement Diagrams, Support Reactions Wall Embedment Safety Factors (Stage 2 – First Support Row Installation).

DeepEX LEM Analysis Result Graphs Construction Stage 4

Figure 6: LEM Analysis – Wall Moment and Displacement Diagrams, Support Reactions Wall Embedment Safety Factors (Stage 4 – Second Support Row Installation).

DeepEX Non Linear Analysis Result Graphs Stage 2

Figure 7: NL Analysis – Wall Moment and Displacement Diagrams, Support Reactions Wall Embedment Safety Factors (Stage 2 – First Support Row Installation).

DeepEX Non Linear Analysis Result Graphs Stage 4

Figure 8: NL Analysis – Wall Moment and Displacement Diagrams, Support Reactions Wall Embedment Safety Factors (Stage 4 – Second Support Row Installation).

DeepEX Finite Element Analysis Result Graphs Stage 2

Figure 9: FEM Analysis – Wall Moment and Displacement Diagrams, Support Reactions Wall Embedment Safety Factors (Stage 2 – First Support Row Installation).

DeepEX Finite Element Analysis Result Graphs Stage 4

Figure 10: FEM Analysis – Wall Moment and Displacement Diagrams, Support Reactions Wall Embedment Safety Factors (Stage 4 – Second Support Row Installation).

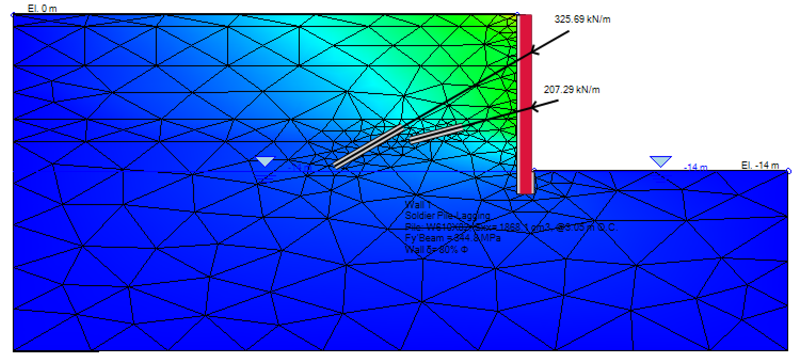

DeepEX FEM Results Horizontal Soil Pressure shadings Stage 5

Figure 11: FEM Analysis – Soil Mass Horizontal Displacement Shadings and Generated Mesh

(Stage 5 – Final Excavation Stage)

DeepEX FEM Results Total Displacement Arrows Stage 5

Figure 12: FEM Analysis – Total Displacement Arrows and Generated Mesh

(Stage 5 – Final Excavation Stage)
