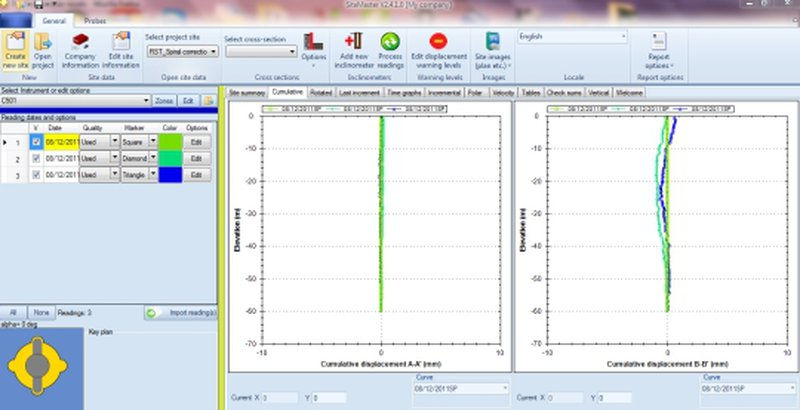

RST Instruments is a Canadian based manufacturer of inclinometer probes and other monitoring equipment. SiteMaster can process both inclinometer and spiral proble data from RST. The following image shows a project with both data analyzed.
The following data illustrates a sample input file from RST.
Borehole,C501-IM00001
Probe Serial#,DP08690000
Reel Serial#,DR14110000
Reading Date(d/m/y),08/12/2011,14:07:19
Depth,-60.0,-0.5
Interval,0.5
Depth Units,meters
Reading Units,meters
Operator,GEOSENSE CDS
Comment:
Comment End:
Offset Correction,0.000000,Incline Angle,0.00
-0.5,0.00989394,-0.00904863,-0.01745086,0.01728112
-1.0,0.00855614,-0.00775241,-0.01322318,0.01322758
-1.5,0.00803742,-0.00705716,-0.00834393,0.00839948
-2.0,0.00990860,-0.00903510,-0.00752914,0.00758532
-2.5,0.00941104,-0.00847086,-0.00561721,0.00562276
-3.0,0.00938392,-0.00855024,-0.00406699,0.00384911
-3.5,0.01234285,-0.01148713,-0.00810939,0.00778986
-4.0,0.01268949,-0.01179848,-0.00839508,0.00816156
Depth,Face A+,Face A-,Face B+,Face B-
