Helical Pile Design Verification - Square Solid Pile Section

Updated: Dec 28, 2023

SS175 (1.75 in size Square Solid Section) with 8''-10''-12'' Helixes


A. Project description


This example presents a detailed example for calculating the ultimate axial capacity of a helical pile according to Vesic 1974 and Meyerhoff/Hansen method. Table 1 below presents assumed soil properties, Table 2 summarizes the soil stratigraphy, while Table 3 describes assumed helical pile properties.


Table 1: Soil properties

ree

Table 2: Stratigraphy (Boreholes)

ree

Table 3: Helical pile properties

ree

ree

Soil Properties and Model in HelixPile


ree

Pile Section Properties and Helix Configuration


B. Ultimate bearing capacity calculations – Individual plate method


B1. Manual calculations


Effective soil stress:


ree

The general bearing capacity equation is:


ree

Calculations for each plate and for the tip:


Plate 3


ree

ree

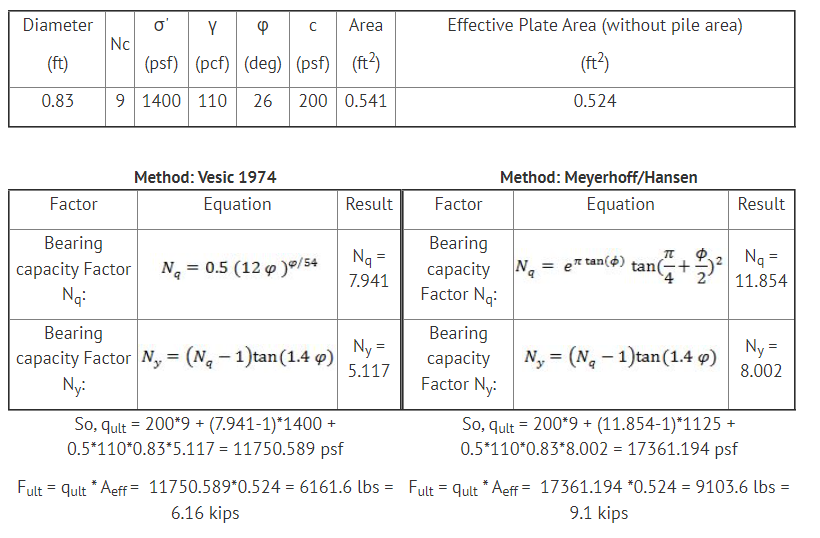

Plate 2


ree

Plate 1


ree

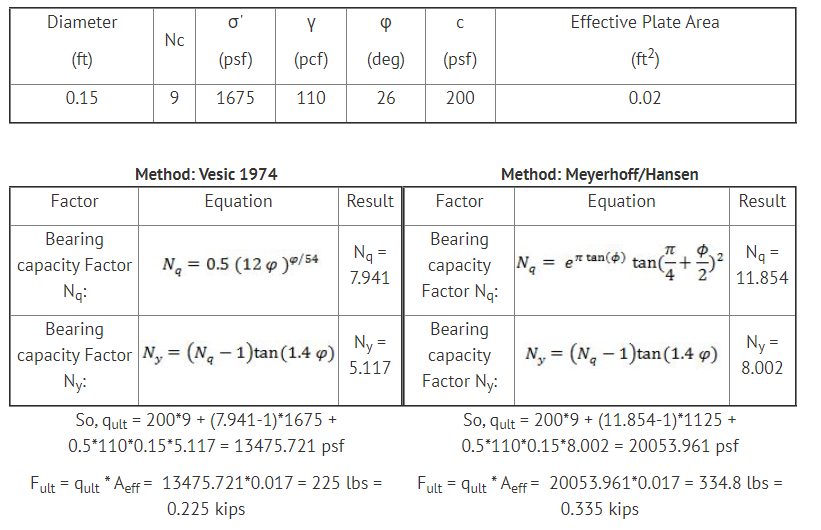

Tip


ree

Table 4: Bearing capacity for each plate/method


ree

B2. Verification using HelixPile Software

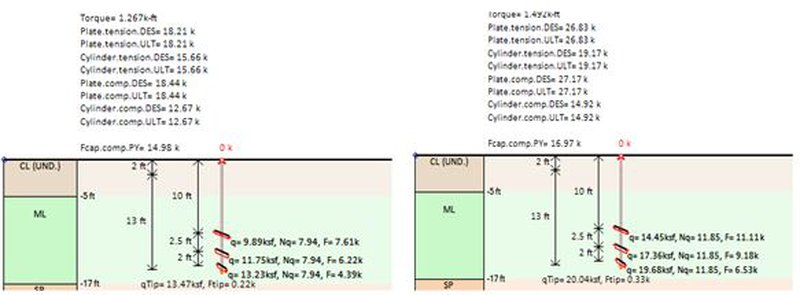

The following Figure presents the software calculated Capacities with each method:


ree

Figure: The plate results on the screen – Vesic - Meyerhoff/Hansen method respectively.

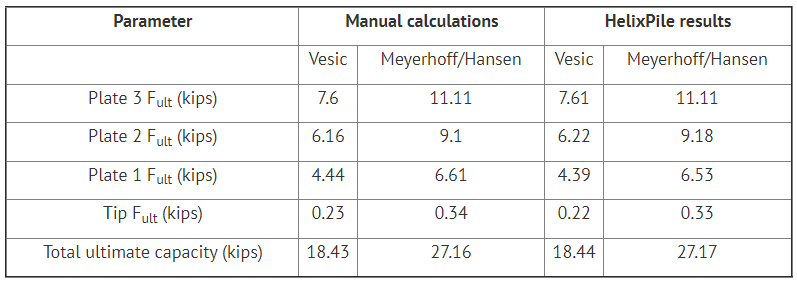

The following table summarizes the hand calculations and the software calculated capacities with all methods:


Table 5: Individual Plate Method - Results Comparison

ree
