How can I generate a Deadman wall model with the DeepEX Model Wizard?
- May 19
- 3 min read
Introduction to Deadman systems
Deadman wall systems are commonly used in construction projects for stabilizing retaining walls or excavation support structures. The concept revolves around the use of an anchor (the "deadman") buried in the soil away from the wall, connected via cables or rods to the wall. This system helps resist the lateral earth pressure applied by the soil behind the wall, ensuring stability and preventing collapse. A typical deadman system involves a retaining wall, a buried anchor (often a concrete block or steel beam), and a tieback or rod that links the anchor to the wall. These systems are used in various applications, including:
• Excavation support to prevent trench collapses.
• Retaining walls in landscaping and infrastructure projects.
• Temporary shoring systems for construction sites.
With advances in engineering software, simulating the behavior and performance of deadman wall systems under different soil and load conditions is essential. DeepEX is a powerful tool for this purpose, enabling engineers to model complex excavation and retaining wall systems efficiently.
Simulating Deadman Walls in DeepEX
Using DeepEX software to simulate deadman wall systems is straightforward, thanks to its Model Wizard feature. The following steps outline the process for creating a deadman wall model in DeepEX:
A. Open Model Wizard and Select a Unit System
Begin by launching the Model Wizard in DeepEX and selecting the appropriate unit system (metric or imperial) for your project. This ensures that all calculations and model inputs are standardized according to your selected units.
B. Select Analysis Method and Soil/Water Pressure Options
Next, choose the desired analysis method based on the project’s needs, such as limit equilibrium, finite element method (FEM), or another approach. You will also need to define how soil and water pressures will be considered in the model. This step is critical for determining the lateral forces acting on the wall.

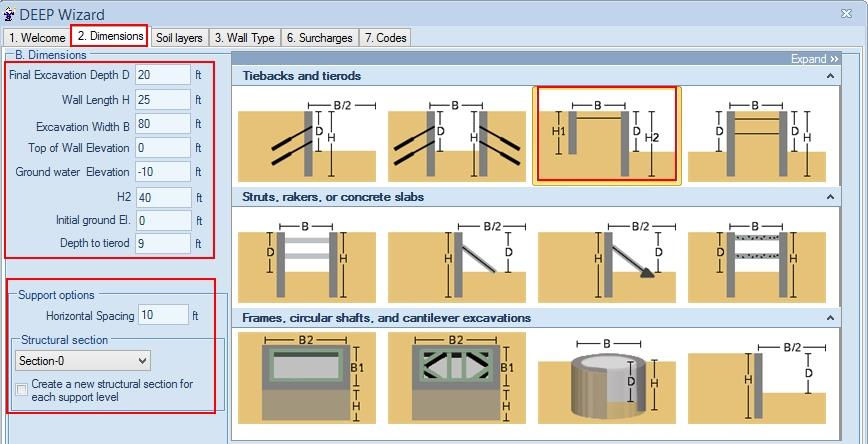

C. Select Project Type (Dead-man) and Define Project Dimensions and Support Properties
Afterward, select the project type, in this case, Dead-man. The software will tailor the model setup accordingly. You will define key project dimensions, such as the height and width of the retaining wall, and the properties of the supports, such as the tiebacks and anchors.
D. Define Soil Properties and Stratigraphy
To model the interaction between the wall, the deadman, and the surrounding soil, define the soil properties (density, cohesion, friction angle) and establish the soil stratigraphy (layers and their thickness). The soil’s mechanical properties are crucial for calculating the pressures exerted on the wall and the forces required to keep it stable.

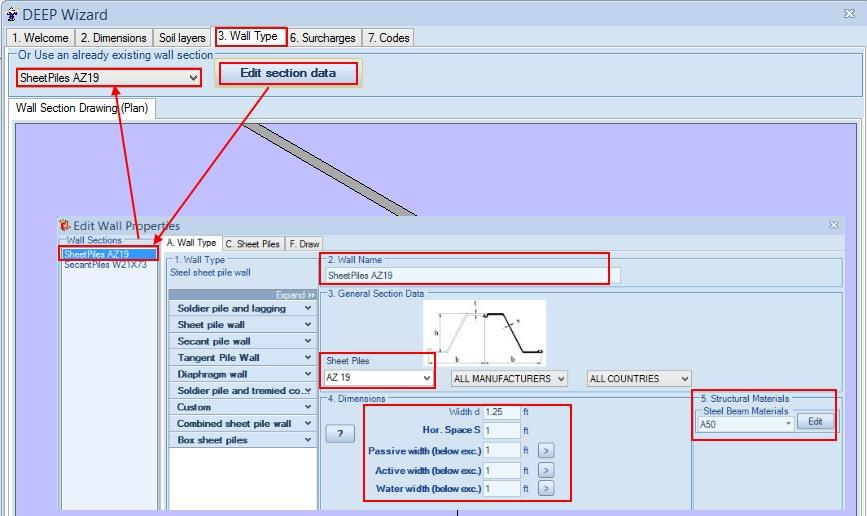

E. Define Wall Section Properties
Assign a specific wall section to both the main retaining wall and the deadman wall. The wall section properties, including thickness, material type, and stiffness, will influence the model's behavior and results.
F. Define Surface Surcharge
In cases where additional loads, such as traffic or structures, are present near the wall, you can define surface surcharges in this step. These surcharges represent extra forces acting on the system, which can significantly affect the wall’s performance.

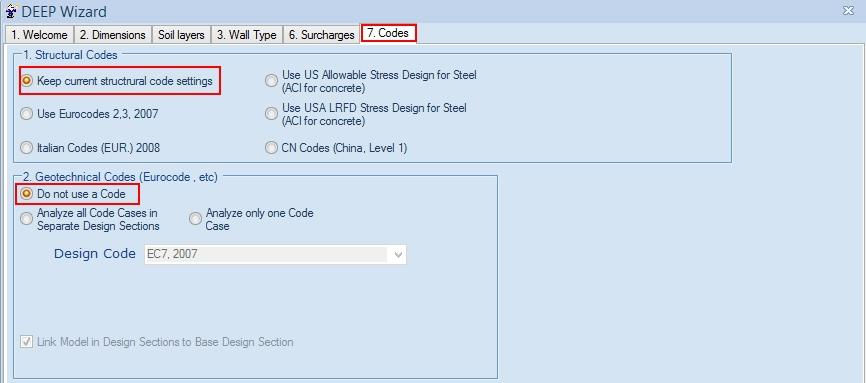

G. Define Structural and Geotechnical Codes
Finally, assign the relevant structural and geotechnical codes to ensure that the model complies with applicable design standards. DeepEX allows users to select from a variety of codes, including Eurocodes, AASHTO, and others. This guarantees that the design adheres to industry best practices.
Once all steps are completed, DeepEX will automatically generate the full construction stages for the deadman wall model. These stages can be reviewed and modified as necessary to reflect real-world construction phases
DeepEX provides a comprehensive environment for modeling and analyzing deadman wall systems, allowing engineers to assess stability under various soil and load conditions. By following the step-bystep process outlined above, users can create detailed simulations of deadman systems that account for soil pressures, structural loads, and safety factors, ensuring robust and reliable designs. With its powerful modeling capabilities and user-friendly interface, DeepEX is an essential tool for engineers working with excavation and retaining wall systems.
