How can I estimate the lateral earth coefficients Ka and Kp in my DeepEX model?
- May 19
- 2 min read
Within DeepEX, users can choose from several methods to calculate the lateral earth coefficients. Here are the available options:
- Automatic Mode (Recommended)
In Automatic Mode, the software calculates Ka and Kp based on the defined model options, considering factors like straight or inclined surfaces, wall friction, and seismic pressures. This is the recommended method for most users
To speed up the estimation process, you can use specific commands in the software's command line (located below the stages):

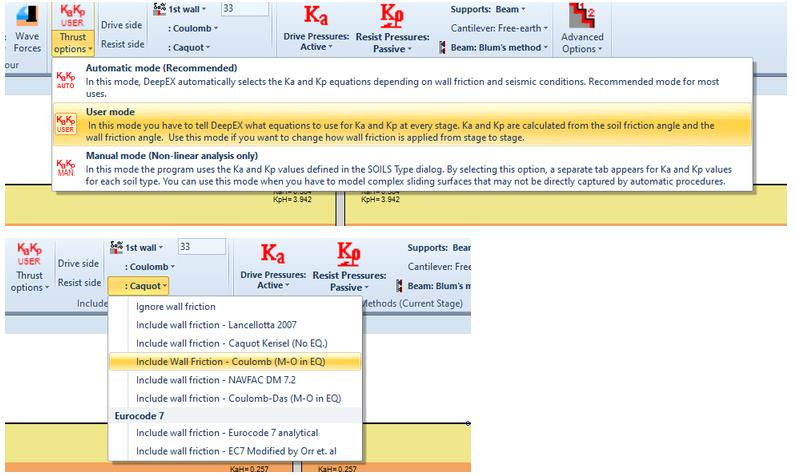

KA ESTIMATE: Type this command and press enter to open a dialog where you can input friction angles and wall frictions. The software will quickly calculate Ka properties using different methods. The horizontal component, Kah, is of particular interest.
KP ESTIMATE: Similarly, this command allows you to estimate Kp properties
- User Mode
In User Mode, you have the flexibility to select the calculation method for each side of the wall (driving and resisting) independently. This mode provides more control over the estimation process, allowing for tailored calculations based on specific project requirements.
- Manual Mode (Not Recommended, Only for Non-Linear Analysis)
Manual Mode is intended for advanced users conducting Non-Linear (NL) analysis. It is recommended only in cases where the wedge analysis is unsuitable, such as very rough surfaces.
In Manual Mode, you can create completely horizontal surfaces, set wall friction to zero, and use user-defined Ka and Kp values from the soils dialog. This method is less commonly used and should be approached with caution.
General Recommendations:
We generally recommend using either the Automatic or User Mode for estimating lateral earth coefficients. These methods offer a balance of accuracy and convenience.
By defining soil properties (such as friction angle and wall friction) in the model area for each soil type, you can see the calculated earth coefficients directly. With a few adjustments, you can define realistic soil properties tailored to your project's needs.
