How Can I define combined sheet pile wall sections in DeepEX?
- May 19
- 1 min read
Combined sheet pile walls — which consist of king piles (such as H‑beams, double H‑beams, pipes, or reinforced concrete piles) combined with sheet piles — are fully supported in DeepEX. These systems are commonly used when higher bending capacity or deeper penetration is required, and they are available directly in the software.
In DeepEX, you can:

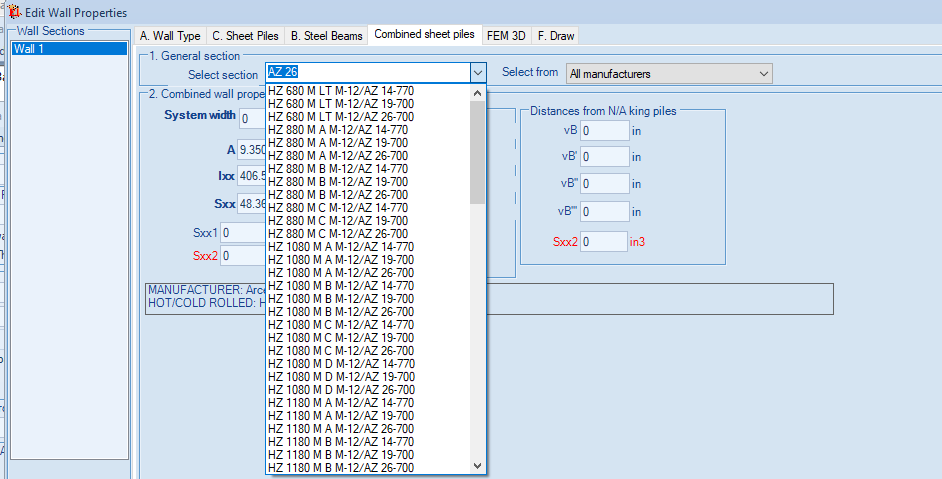

A. Select from a library of directly implemented sections provided by different manufacturers.
B. Define your own custom combined sections.
If you wish to manually define a combined sheet pile wall section, it is not enough to simply define the pile section and the sheet pile section separately. You must also:
Open the Combined Sections tab in the Wall Sections dialog.
Manually enter the bold values for the combined section:
Area (A)
Moment of Inertia (Ixx)
Section Modulus (Sxx)
These parameters are the ones DeepEX uses in its structural calculations for combined walls, so ensuring accurate values is essential.
